Antenna P-58 L700 UNI

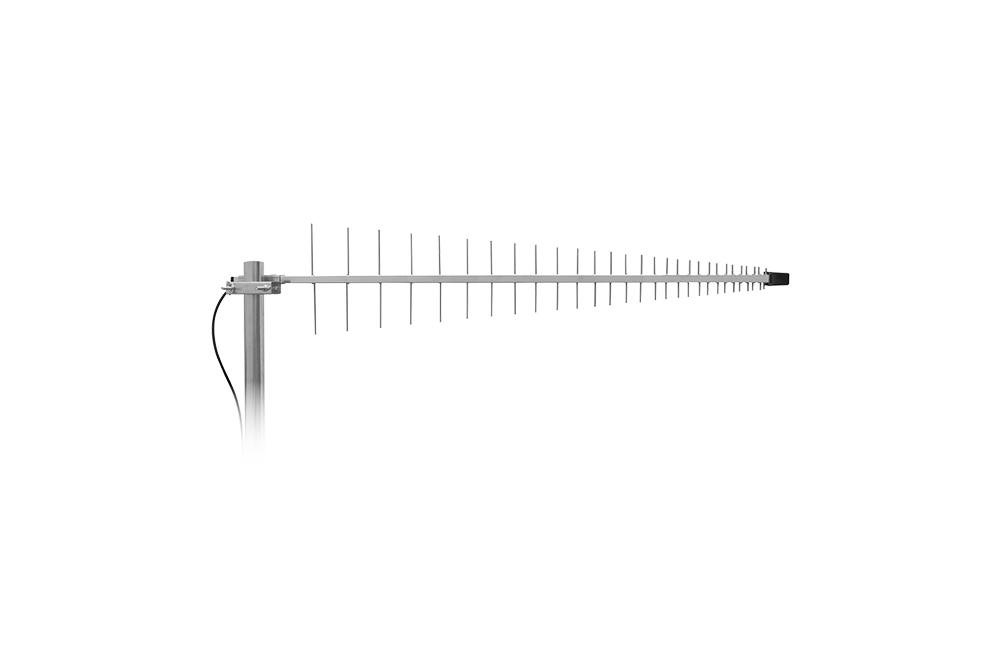

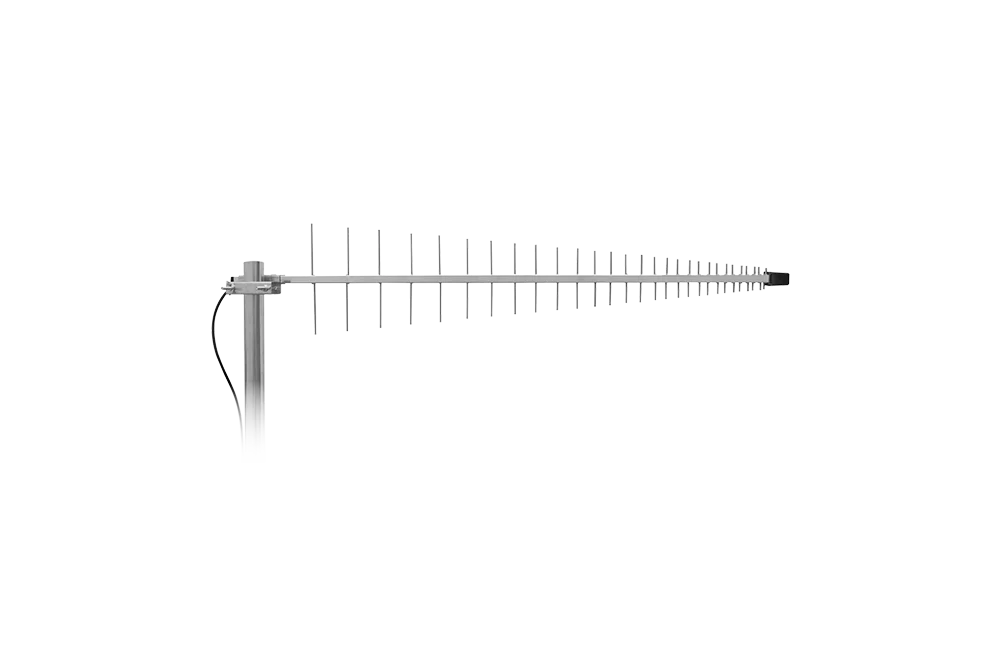

Antenna P-58 L700 UNI is used for the reception of mobile operators' signals. It covers ultra-wide frequency range from LTE 700 to LTE 2,6 GHz frequency bands.
Reliable and robust design for optimum performance and long life time. Easy to install.
Gain: 9-11 dB(i)
- P-58 L700 UNI: Version for vertical polarization only and »FME« female connector on cable end.
- P-58 L700 UNI H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-58 L700 UNI SMA: Version for vertical polarization only and »SMA« male connector on cable end.

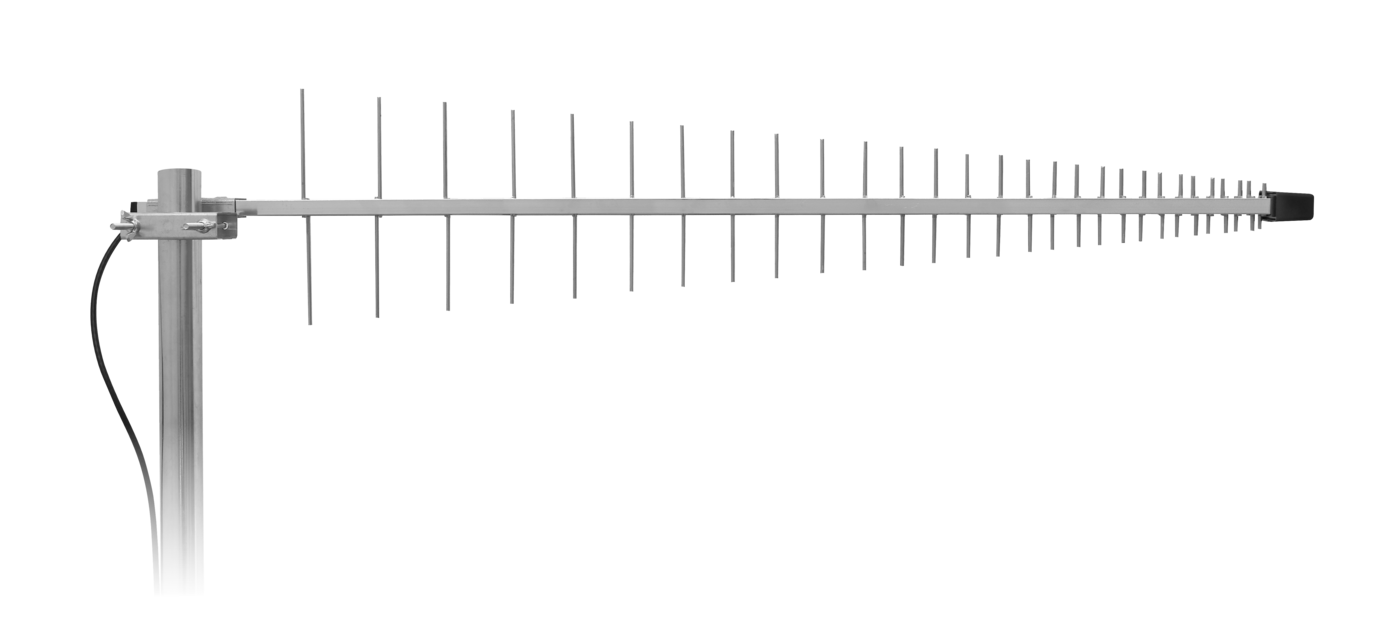

- P-58 L700 UNI SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
- P-58 L700 U-MIMO: Set of two antennas in 45° polarisation. Each antenna has SMA male connector on cable end.
- Freq. band (frequency): LTE 700 (698-790 MHz), LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz) and LTE 2,6 GHz (2,5-2,7 GHz)
- No. of elements: 58
- Gain: 9-11 dB(i)
- Max. VSWR: <1,6 : 1
- F/B ratio: 23 dB
- Beam width: Horizontal 54°; Vertical 46°
- Impedance: 50 Ohm
- Max. power connection: 50 Watt
- Antenna length: 107 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
