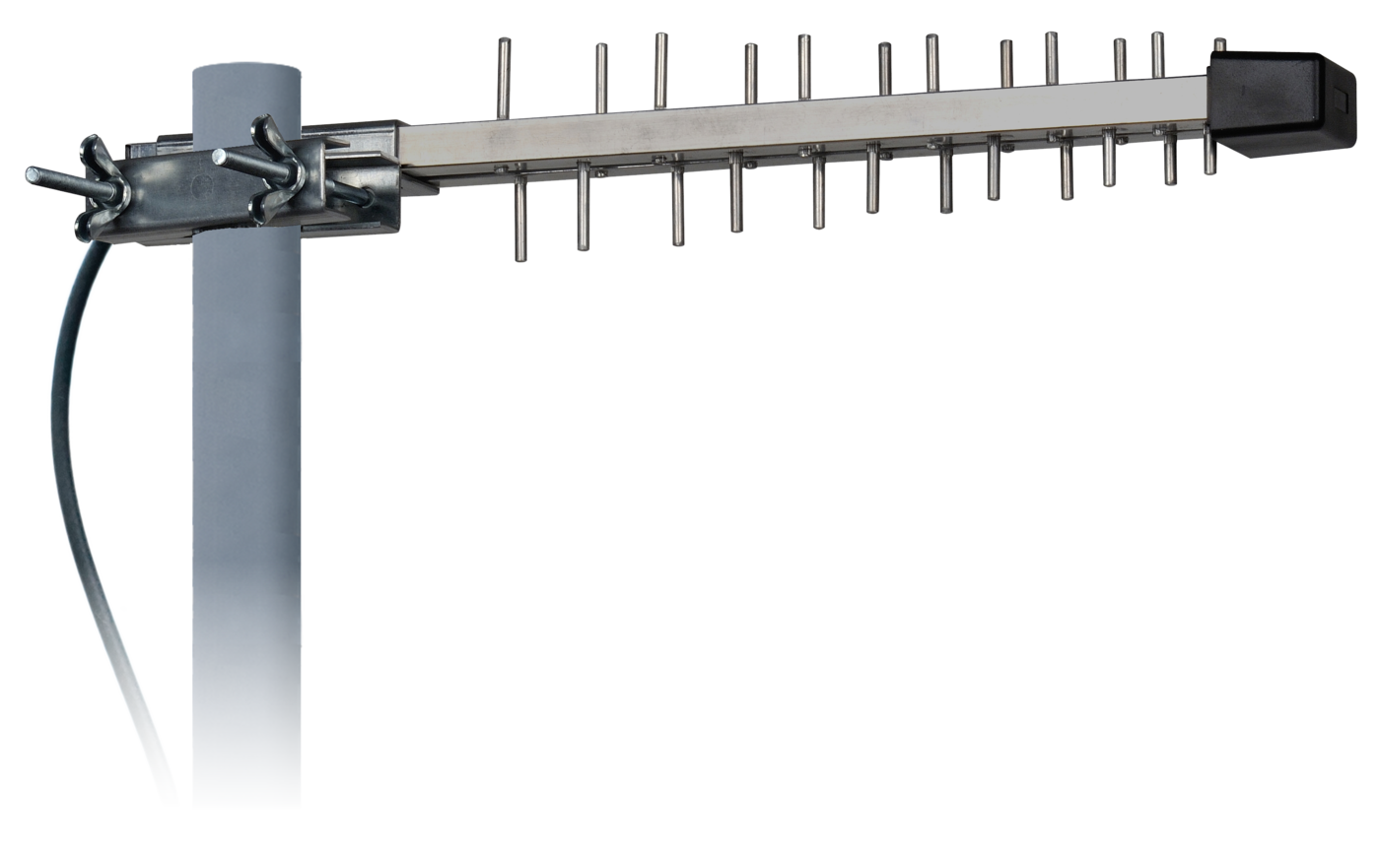

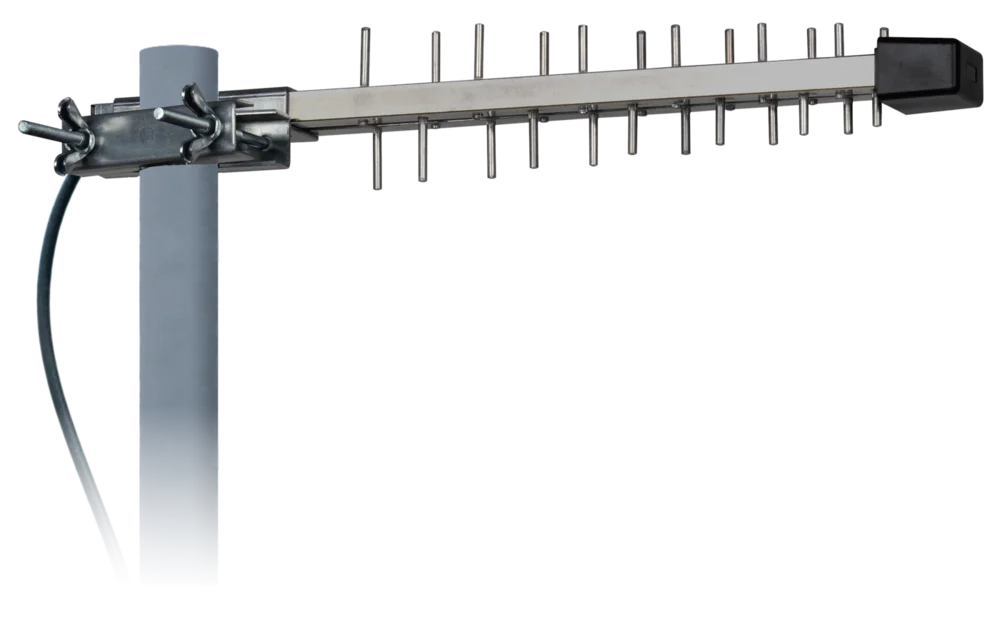

Antenna P-24 WL

Antenna P-24 WL is used for the reception of Wi-Fi (LAN) signals and mobile operators' signals LTE 2,6.

B2B shop

P-24 WL: version for vertical polarization only and »FME« female connector on cable end.

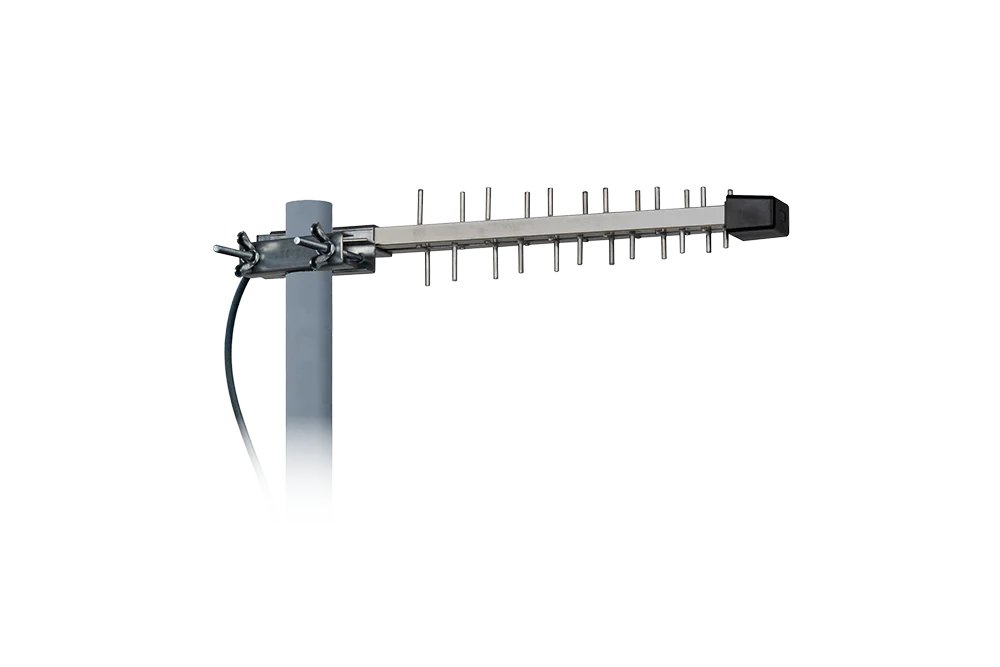

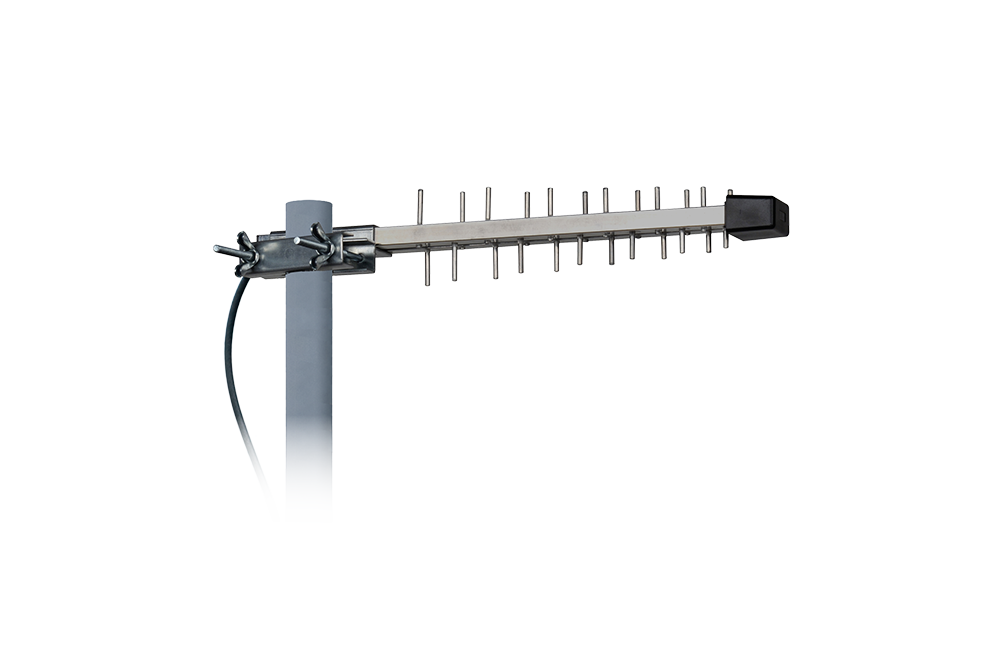

P-24 WL H/V: version for horizontal or vertical polarization and »FME« female connector on cable end.

Freq. band (frequency): 2,4 - 2,7 GHz
No. of elements: 24
Gain: 11 dB(i)
Max. VSWR: 1,6 : 1
F/B ratio: 24 dB
Beam width: Horizontal 48° ; Vertical 34°
Impedance: 50 Ohm
Antenna length: 41 cm
Coaxial cable: cable length 10 m
