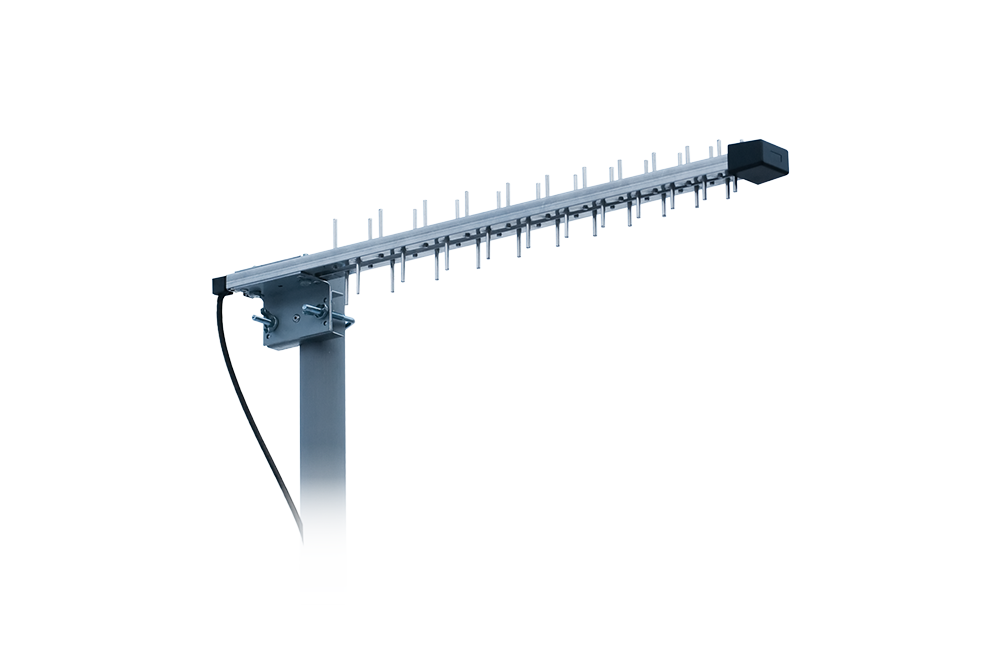

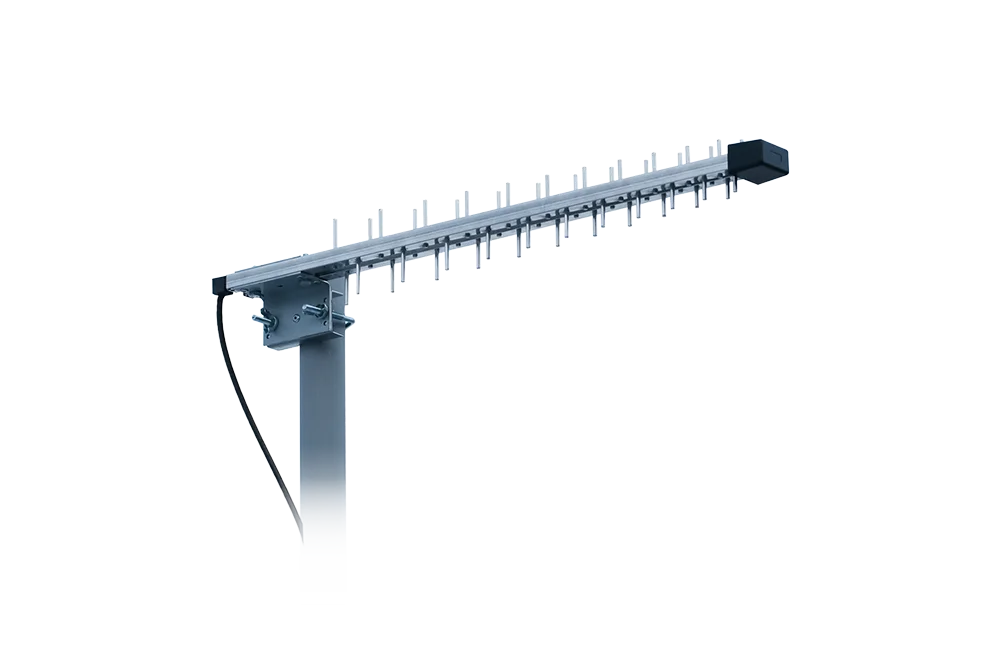

Antenna P-44 LAN

Antenna P-44 LAN is used for transmission of wireless (Wi-Fi) LAN signal with vertical polarization.

B2B shop

Freq. band (frequency): 2,4-2,5 GHz
No. of elements: 44
Gain: 12 dB(i)
Max. VSWR: %mylt%2,0 : 1
F/B ratio: 24 dB
Beam width: Horizontal 34°; Vertical 42°
Antenna length: 60,5 cm
Impedance: 50 Ohm
Coaxial cable: impedance 50 Ohm, cable length 3 m
Connector: without connector on cable end
Mounting on mast with outside diameter: 20-50 mm
