Antenna P-56 UNICOM
Antenna P-56 UNICOM is used for the reception of mobile operators' signals. It covers wide frequency range from LTE 800 to LTE 2,6 GHz frequency bands.
Reliable and robust design for optimum performance and long life time. Easy to install.
Gain: 9,5-11,5 dB(i)

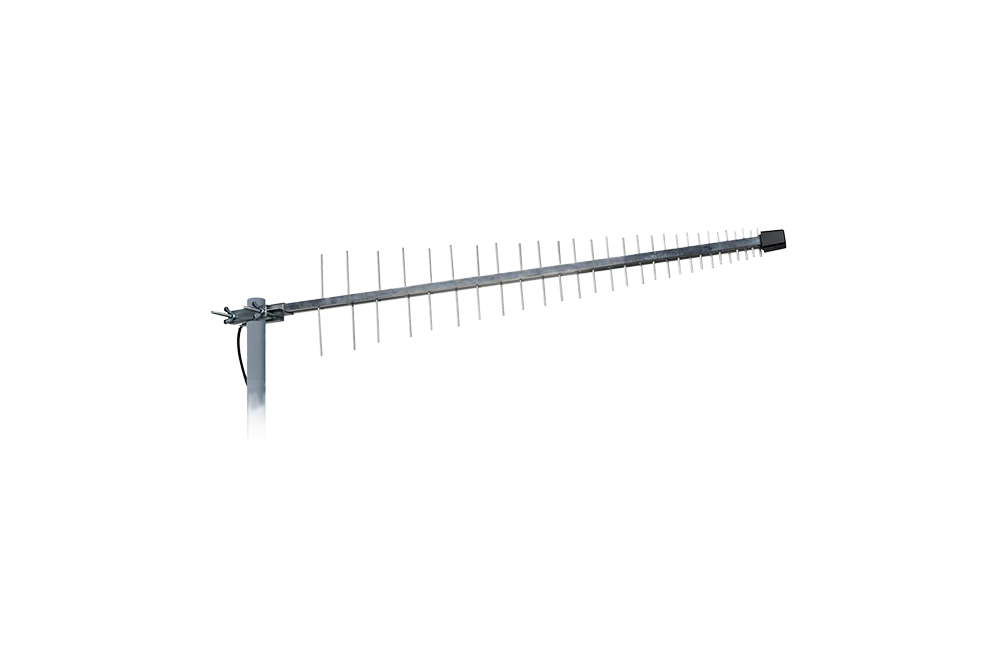

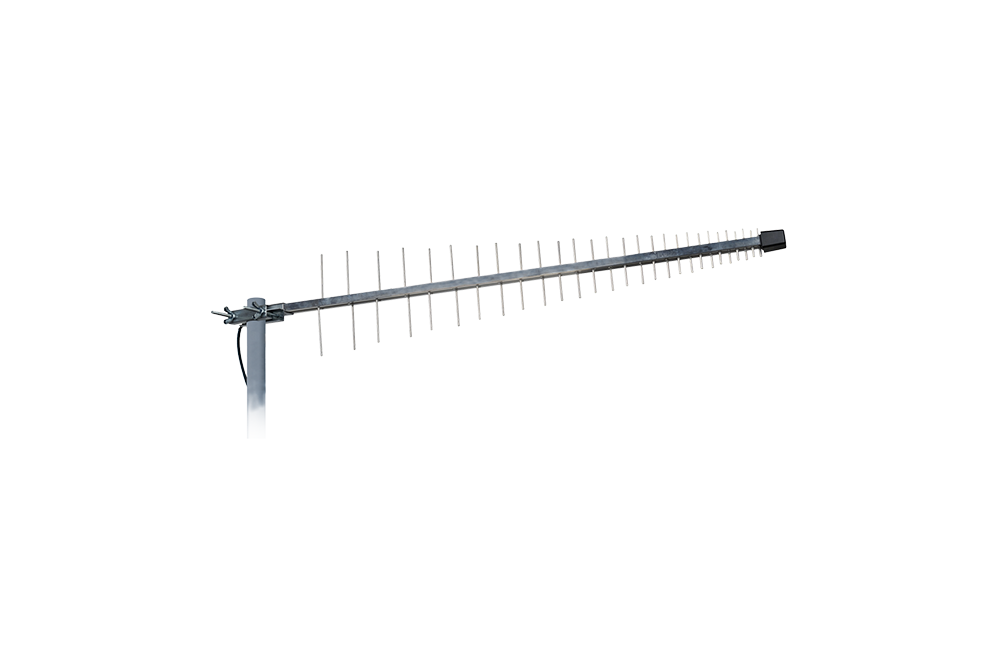

- P-56 UNICOM: Version for vertical polarization only and »FME« female connector on cable end.

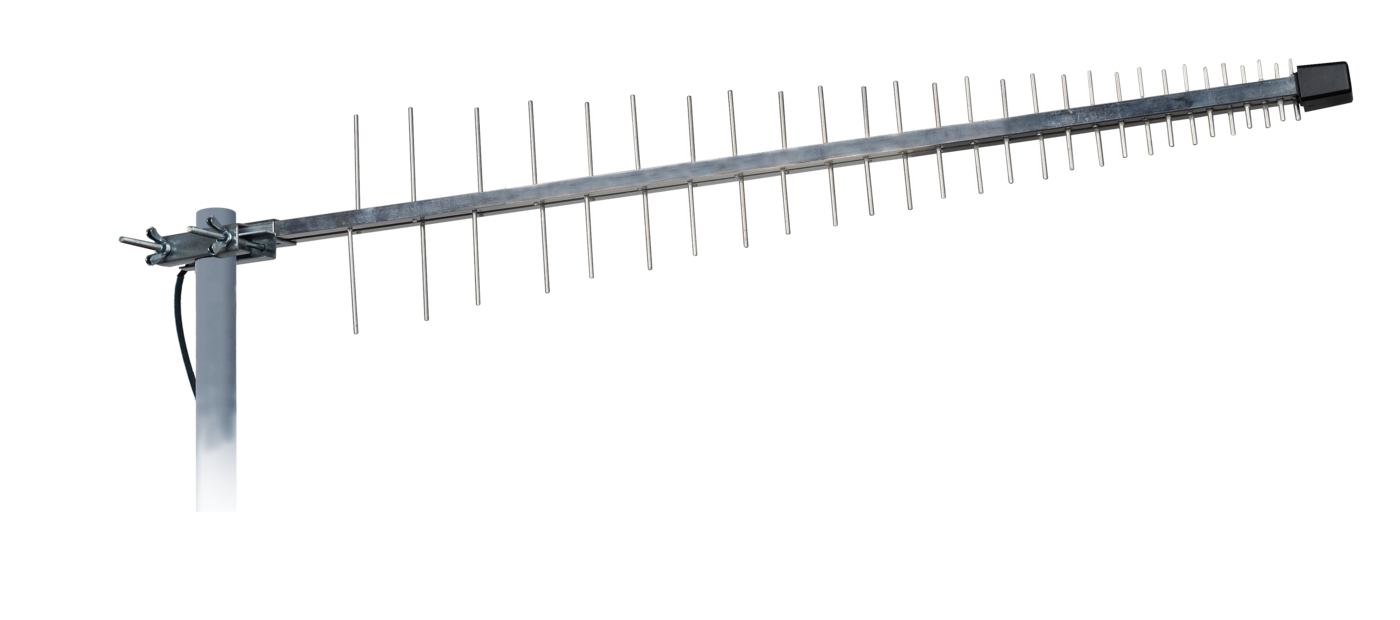

- P-56 UNICOM H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-56 UNICOM SMA: Version for vertical polarization only and »SMA« male connector on cable end.
- P-56 UNICOM SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
- P-56 UNICOM N H/V: Version for horizontal or vertical polarization and »N« female connector on cable end.
- P-56 UNICOM MIMO: Set of two antennas in 45° polarisation. Each antenna has SMA male connector on cable end.
- Freq. band (frequency): LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz) and LTE 2,6 GHz (2,5-2,7 GHz)
- No. of elements: 56
- Gain: 9,5-11,5 dB(i)
- Max. VSWR: <1,5 : 1
- F/B ratio: 24 dB
- Beam width: Horizontal 52°; Vertical 44°
- Impedance: 50 Ohm
- Max. power connection: 50 Watt
- Antenna length: 98 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
