Antenna P-54 GSM-UMTS
Antenna P-54 GSM-UMTS

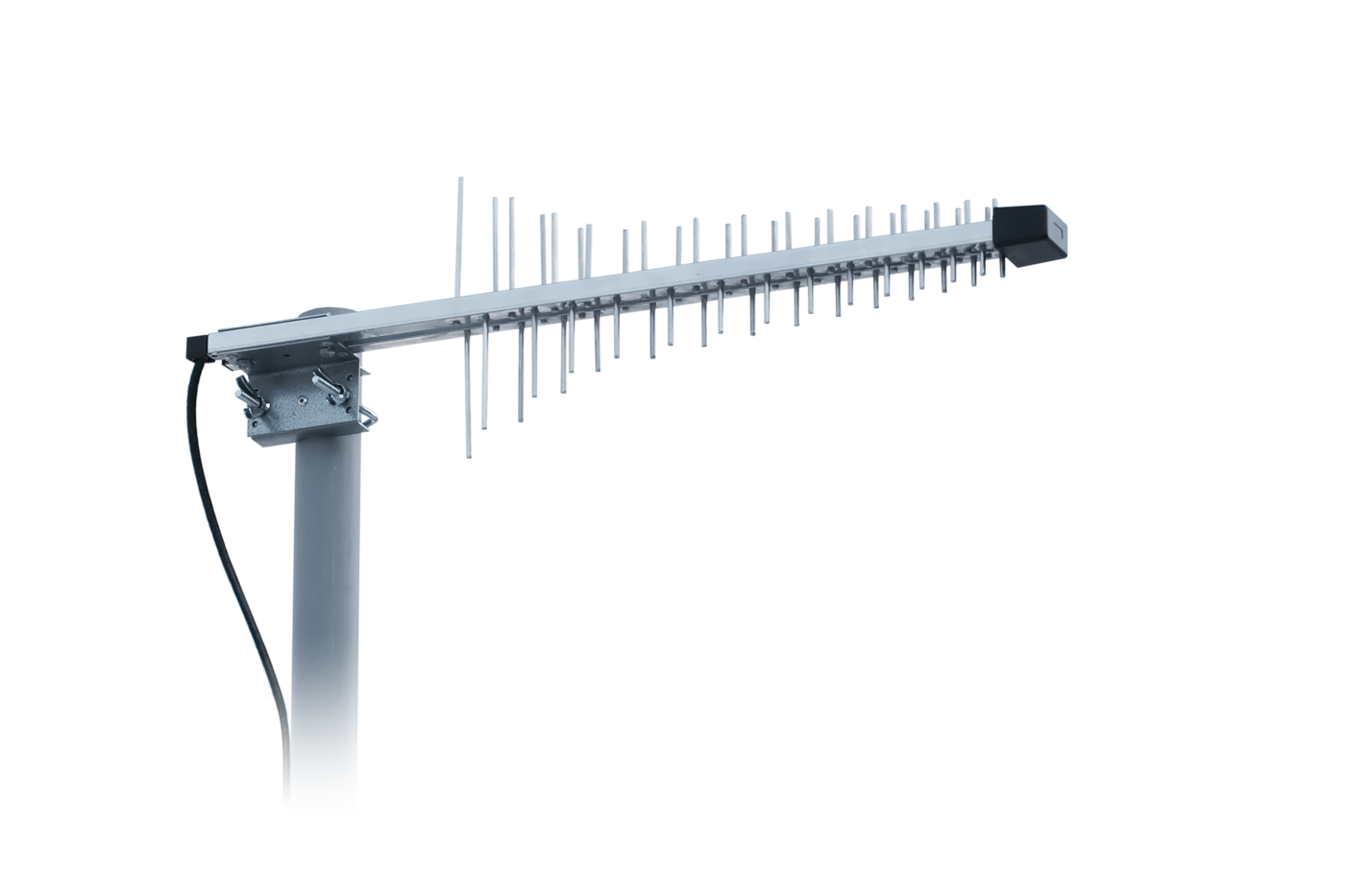

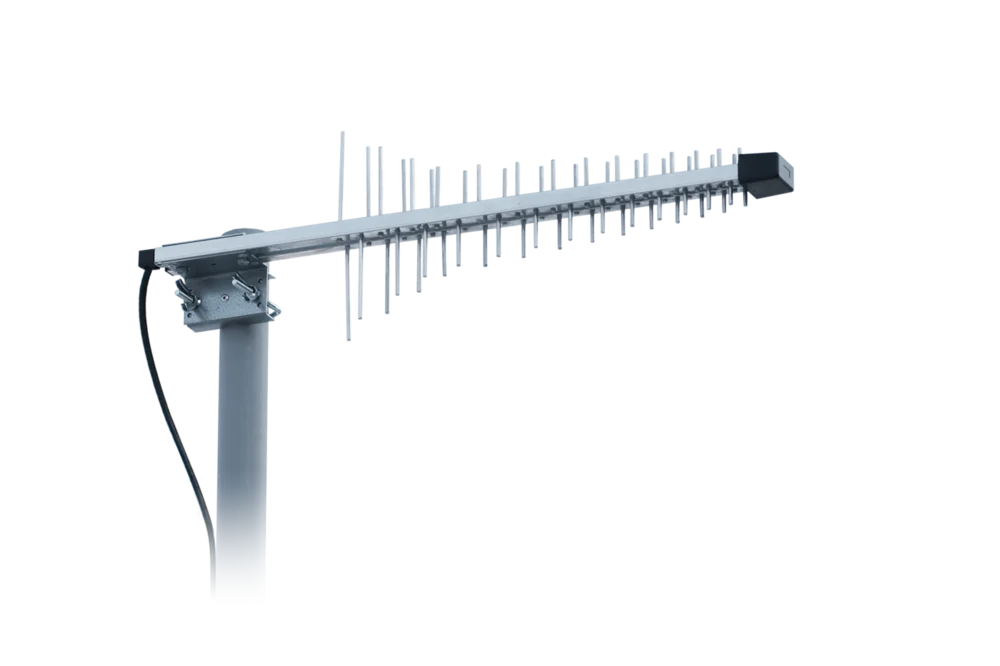

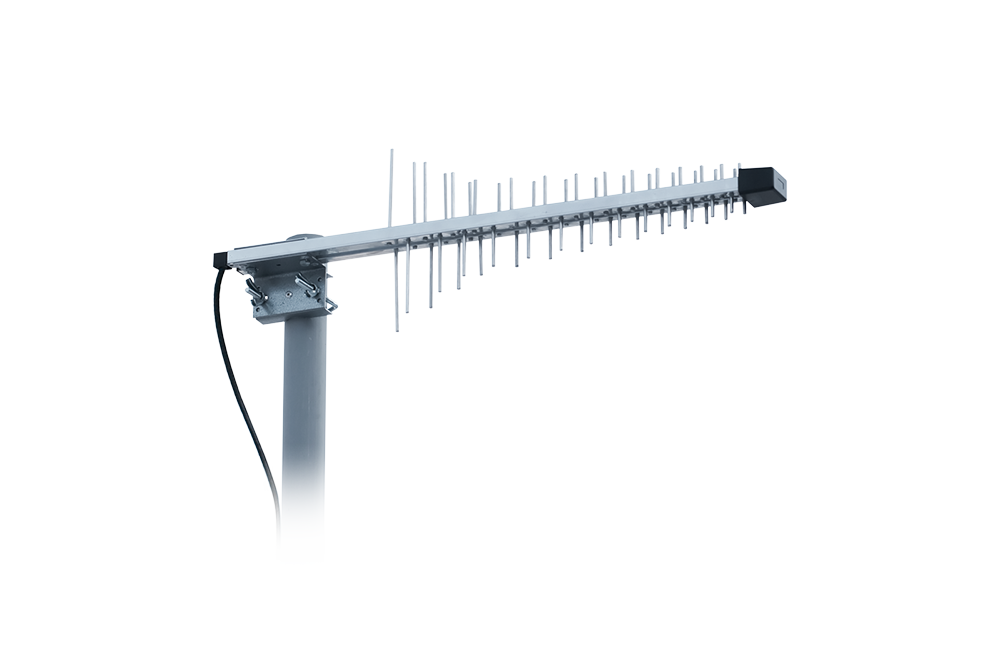

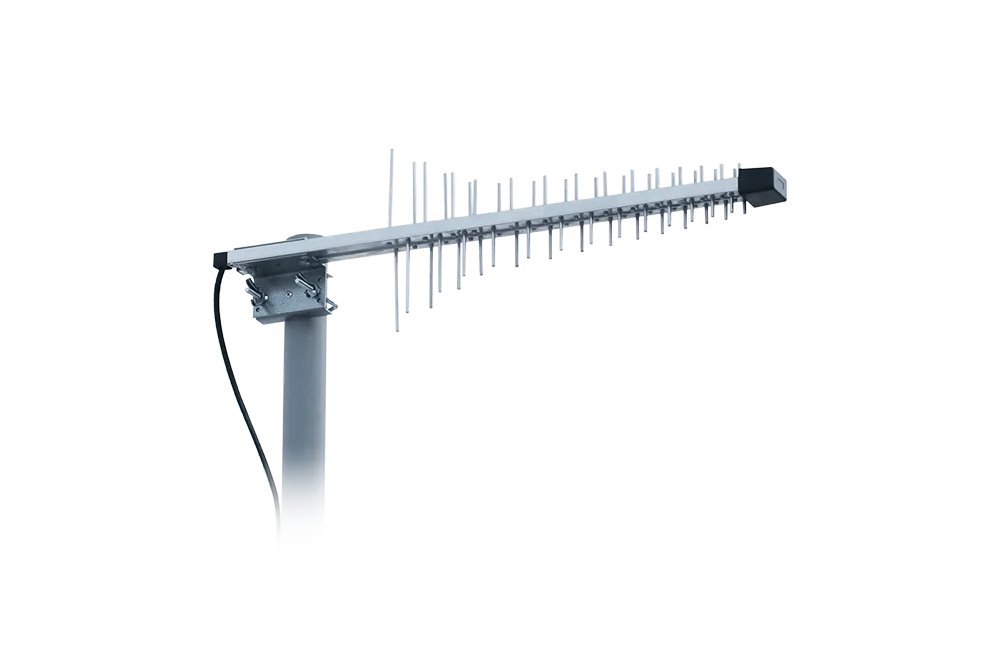

Combined Antenna P-54 GSM-UMTS is used for the reception of mobile operators' signals. It covers frequency range from GSM-900 to UMTS-2100 MHz. The antenna improves radio signal between the base station and the card or modem.
Using this external antenna, mobile communication can be significantly faster.
A major feature of the antennas we produce is that they all have a built-in type »F« female connector for simple installation of the coaxial cable to the antenna.
Gain: 10-12 dB(i)
- P-54 GSM/UMTS: Version for vertical polarization only and »FME« female connector on cable end.
- P-54 GSM/UMTS H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-54 GSM/UMTS SMA: Version for vertical polarization only and »SMA« male connector on cable end.
- P-54 GSM/UMTS SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
- Freq. band (frequency): GSM (890-960 MHz); DCS (1710-1880 MHz); UMTS (1920-2170 MHz)
- No. of elements: 54
- Gain: 10-12 dB(i)
- Max. VSWR: %mylt%1,6 : 1
- F/B ratio: 24 dB
- Beam width: Horizontal 43° ; Vertical 34°
- Impedance: 50 Ohm
- Antenna length: 56,5 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
