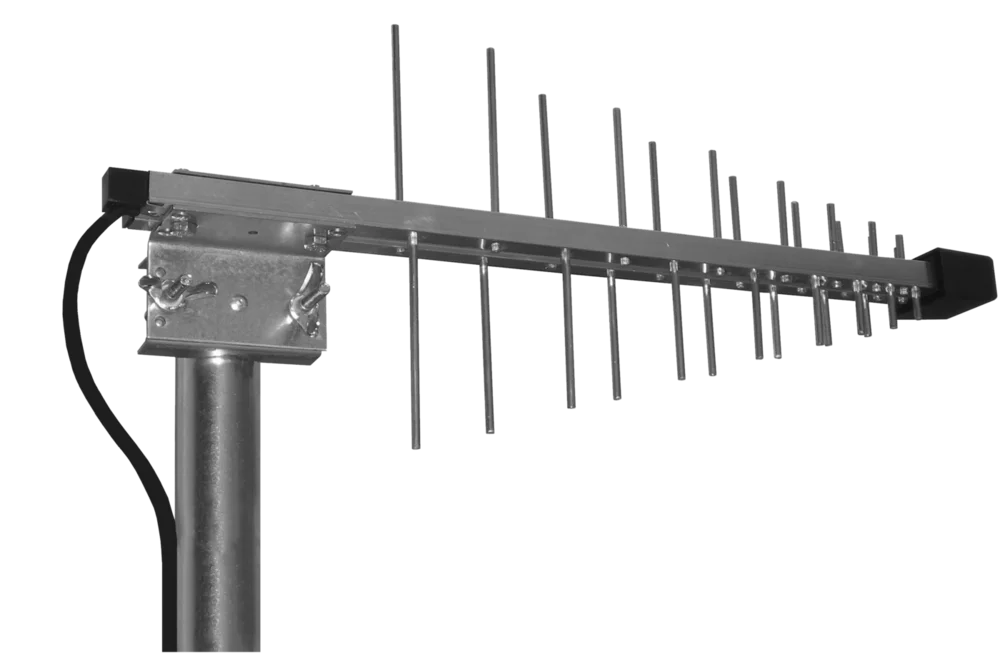

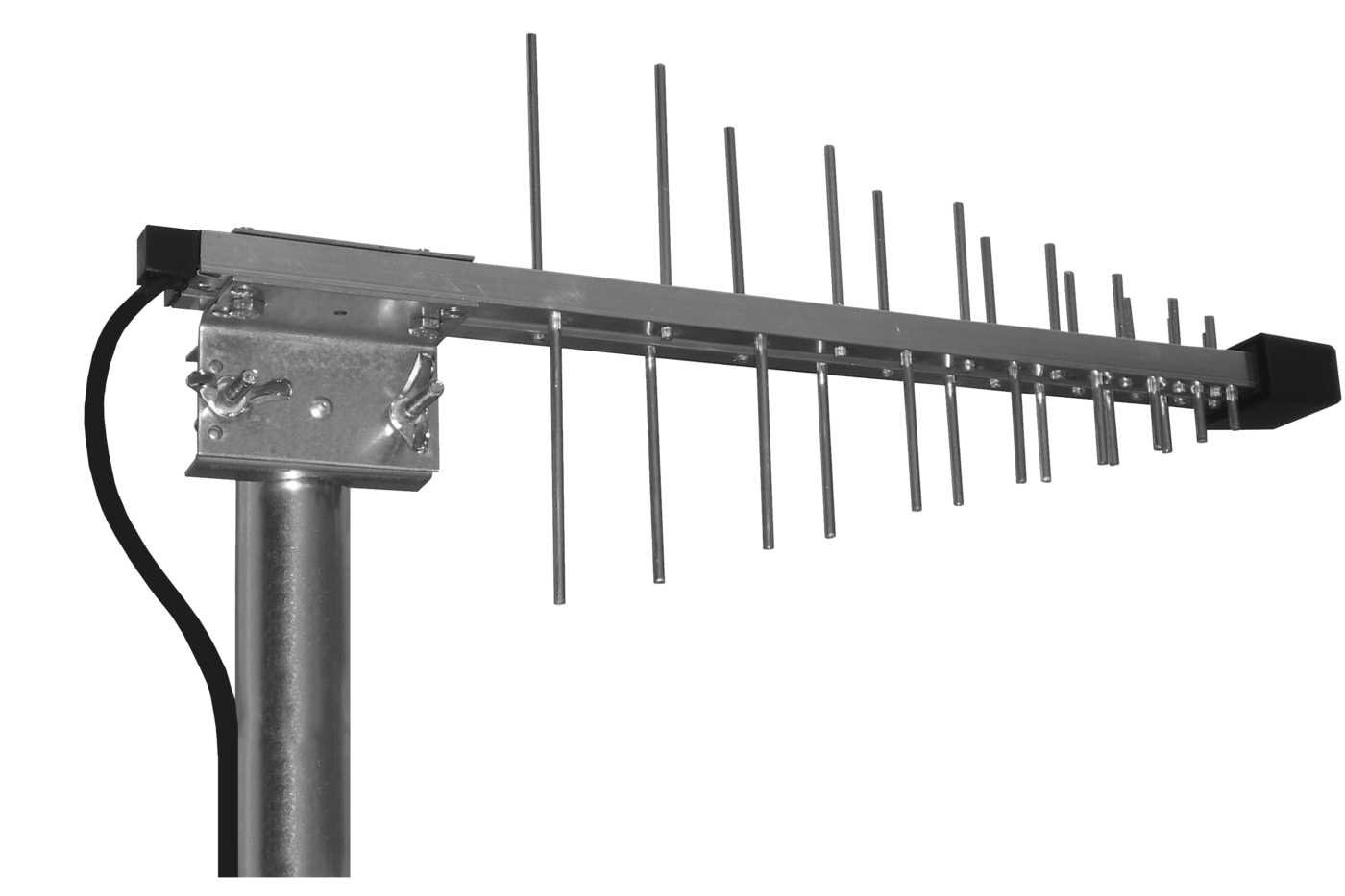

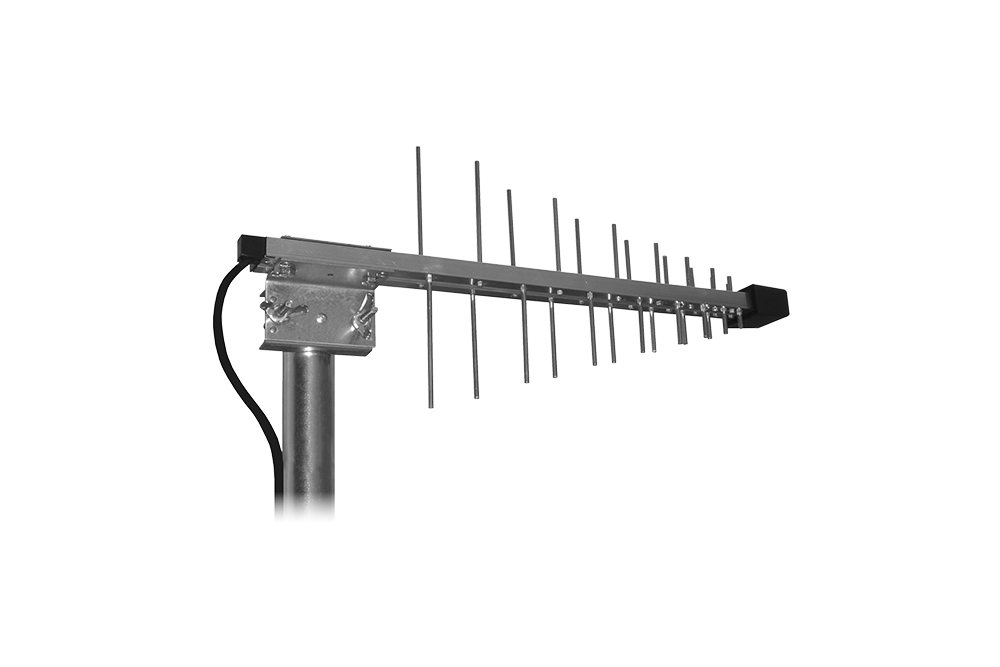

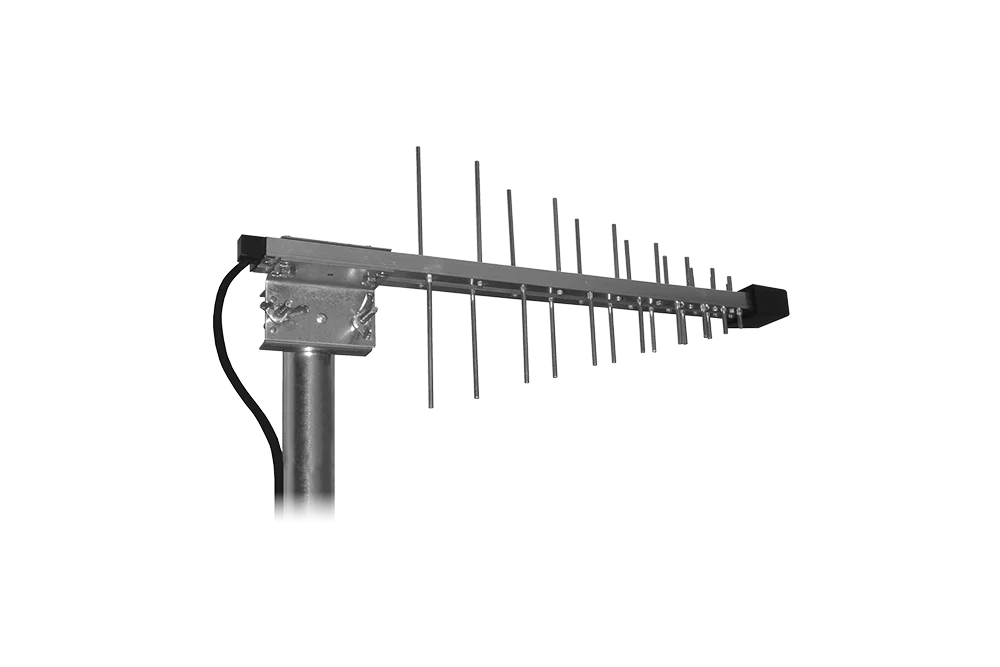

Antenna P-30 UNICOM
Antenna P-30 UNICOM is used for the reception of mobile operators' signals.
It covers wide frequency range from LTE 800 to LTE 2,6 GHz frequency bands.
- P-30 UNICOM: Version for vertical polarization only and »FME« female connector on cable end.
- P-30 UNICOM H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-30 UNICOM SMA: Version for vertical polarization only and »SMA« male connector on cable end.
- P-30 UNICOM SMA H/V: Version for horizontal or vertical polarization and »SMA« male
- P-30 UNICOM MIMO: Set of two antennas in 45° polarisation. Each antenna has SMA male connector on cable end.
- Freq. band (frequency): LTE 800 (790-862 MHz), GSM 900 (880-960 MHz), DCS 1800 (1710-1880 MHz), UMTS (3G) (1920-2170 MHz), Wi-Fi (WLAN) (2401-2495 MHz) and LTE 2,6 GHz (2,5-2,7 GHz)
- No. of elements: 30
- Gain: 6,5-8 dB(i)
- Max. VSWR: <1,5 : 1
- F/B ratio: 23 dB
- Beam width: Horizontal 76°; Vertical 68°
- Impedance: 50 Ohm
- Max. power connection: 50 Watt
- Antenna length: 45 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
