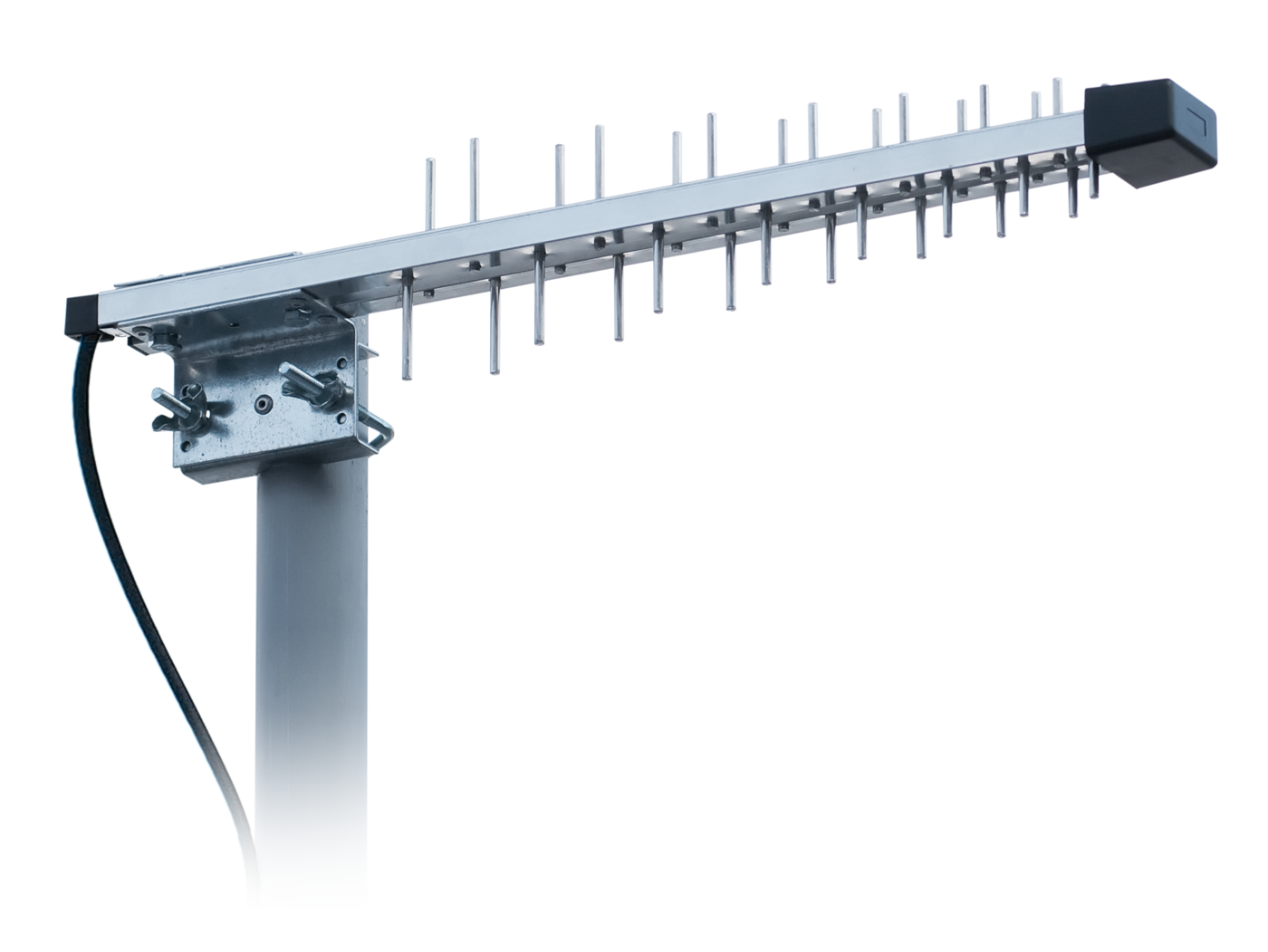

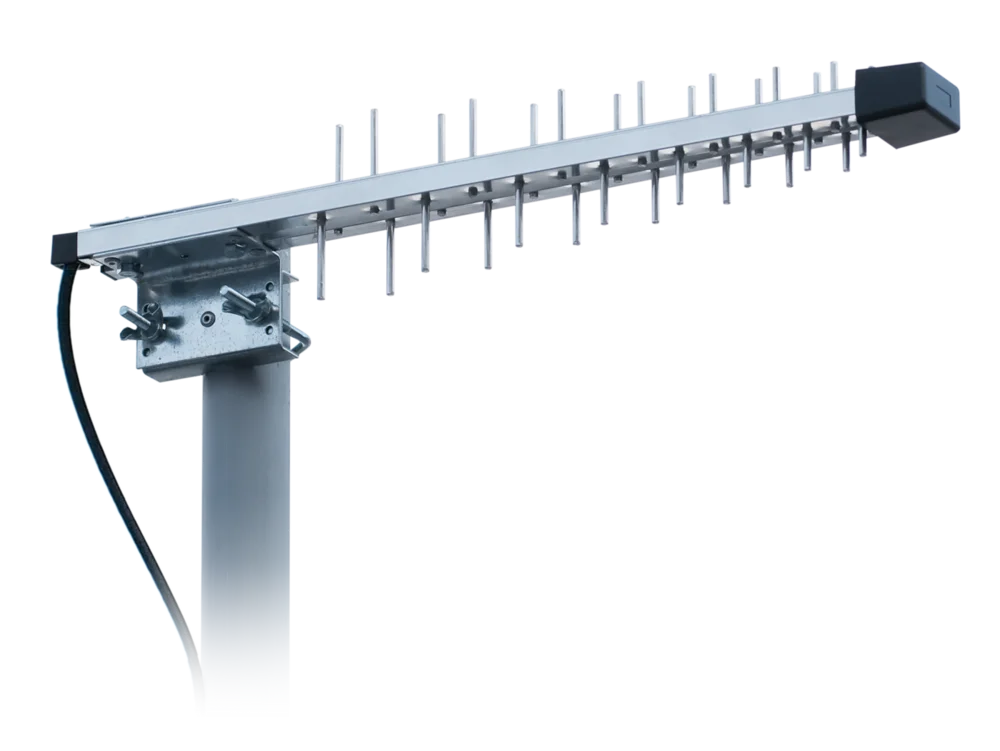

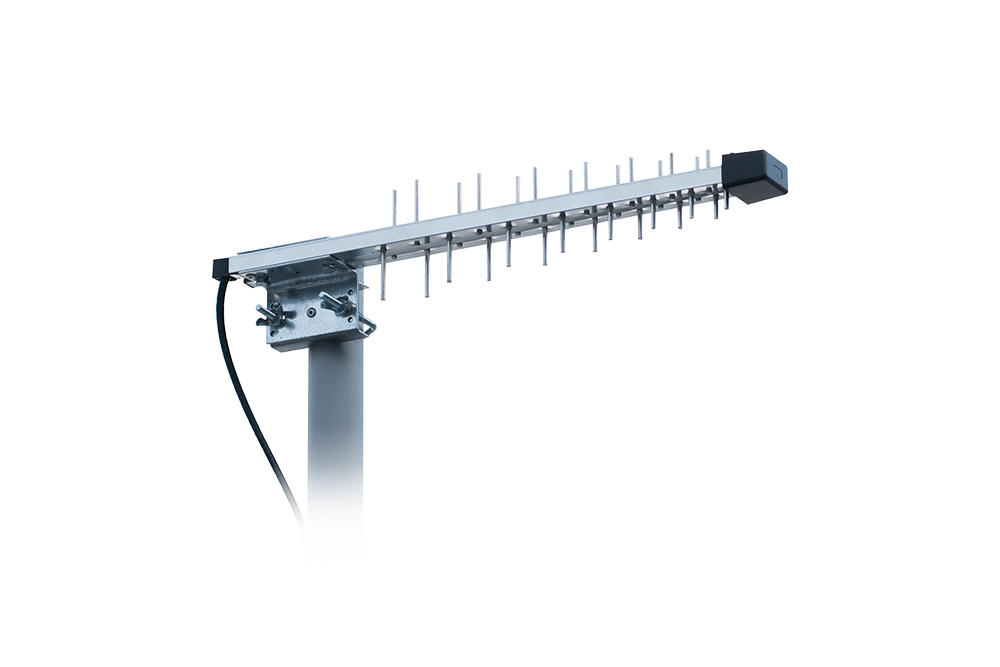

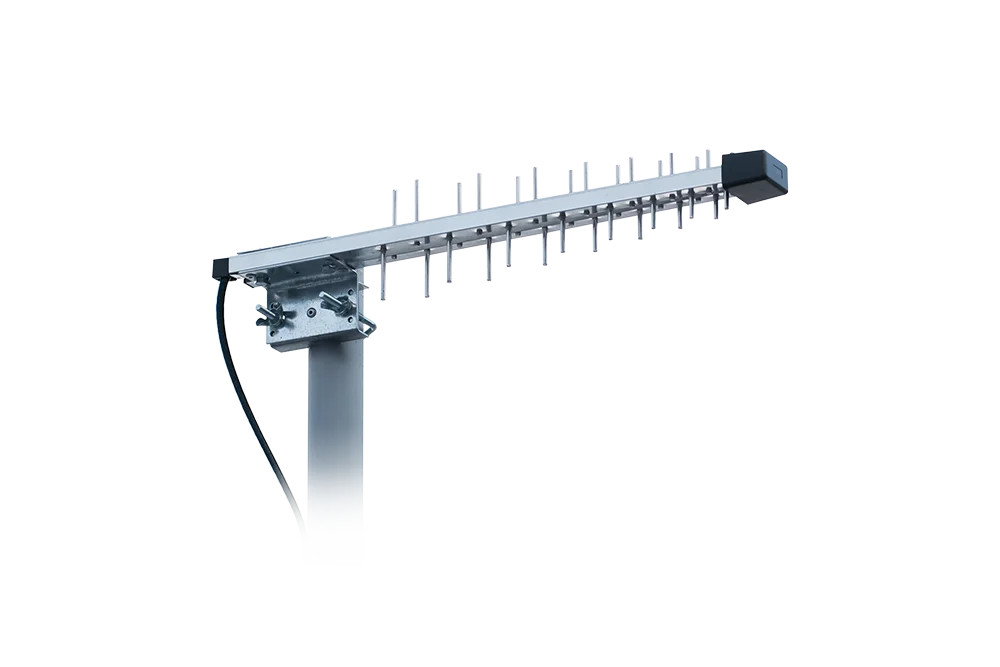

Antenna P-30 UMTS is used for the reception of UMTS mobile operators' signals.
It covers all UMTS frequency band.
- P-30 UMTS: Version for vertical polarization only and »FME« female connector on cable end.
- P-30 UMTS H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-30 UMTS SMA: Version for vertical polarization only and »SMA« male connector on cable end.
- P-30 UMTS SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
- Freq. band (frequency): UMTS (1800-2170 MHz)
- No. of elements: 30
- Gain: 10,5-11,5 dB(i)
- Max. VSWR: <2,0 : 1
- F/B ratio: 24 dB
- Beam width: Horizontal 47° ; Vertical 52°
- Impedance: 50 Ohm
- Antenna length: 47 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
