Network Recorder iMC750

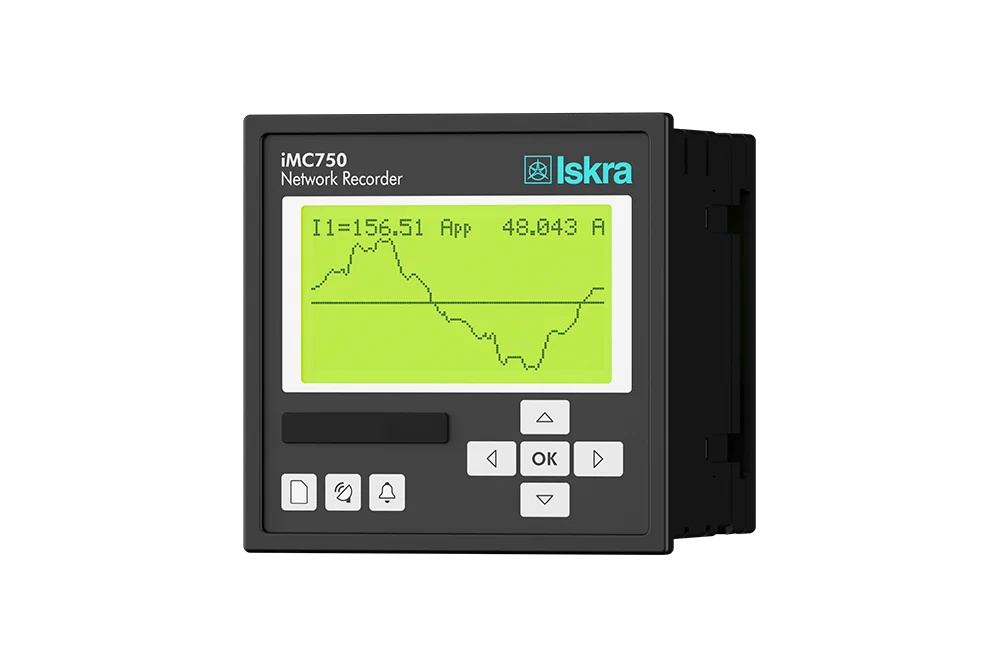

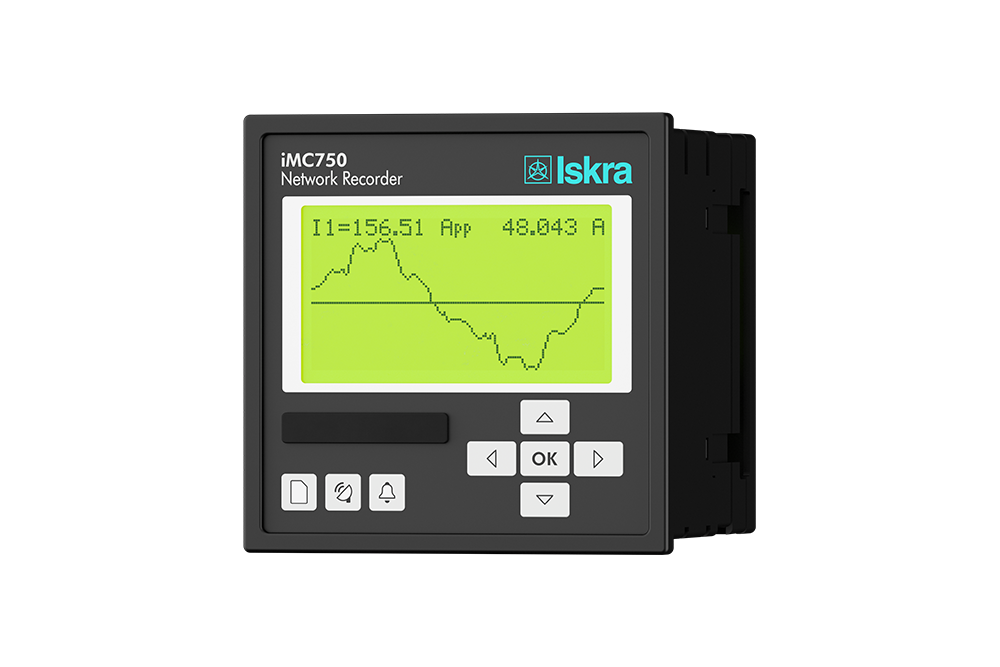

iMC750 Network Recorder is an important device for permanent monitoring measuring and analysing single-phase or three-phase electrical power network.

The meter measures TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals.

  • iMC750 perform measurements in compliance with regulatory requested standard EN 61557-12.
  • All required measurements and Alarms can also be stored locally in an internal memory. With the RS232/RS485 or Ethernet/USB communication the meter can be set, measurements checked, and stored data downloaded.
  • iMC750 Network recorder is intended for monitoring, measuring and recording of electrical quantities of a three-phase electric-energy distribution system.

Identifying relevant fixed measuring points is the most important task prior to complete system installation. This system itself will not prevent disturbances in network but it will help diagnose their origin and effects. This is possible only with system approach by using time-synchronized meters with a wide range of measuring parameters.

  • Product request
  • Download software
Network Recorder iMC750

Network Recorder iMC750

  • Measurements of instantaneous values of more than 140 quantities including harmonics, power line signalling voltage, unbalance, etc..
  • Class S (0.2%) accuracy in compliance with EN EN 61557-12.
  • Four quadrant energy measurement with class 0.5 S or 0.2 S for active energy (8 programmable energy counters, up to four tariffs, tariff clock, etc.).
  • Automatic range selection of 3 current and 4 voltage channels (max. 12.5 A and 1000 VTRMS) with 32 kHz sampling rate.
  • Recording all measured parameters including all voltage and current harmonics up to 63rd, 32 adjustable Alarms, anomalies and quality reports in the internal memory.
  • Measurements of 40 minimal and maximal values in different time intervals (from 1 period to 256 periods).
  • Frequency range from 16 Hz to 400 Hz.
  • Up to three independent communication ports (RS232 or RS485 up to 115,200 bit/s, Ethernet and USB 2.0).
  • MODBUS and DNP3 communication protocols.
  • Support for NTP real time synchronisation.
  • Up to 4 inputs and outputs (analogue inputs/outputs, digital inputs/outputs, alarm/watchdog outputs, pulse input/outputs, tariff inputs).
  • Multilingual support.
  • Universal power supply.
  • 96 mm square panel mounting.
  • User-friendly setting and evaluation software, MiQen.
  • Extension unit with four configurable analogue outputs – EX104 (0.4 mADC … 20 mADC, 0 VDC … 10 VDC).
