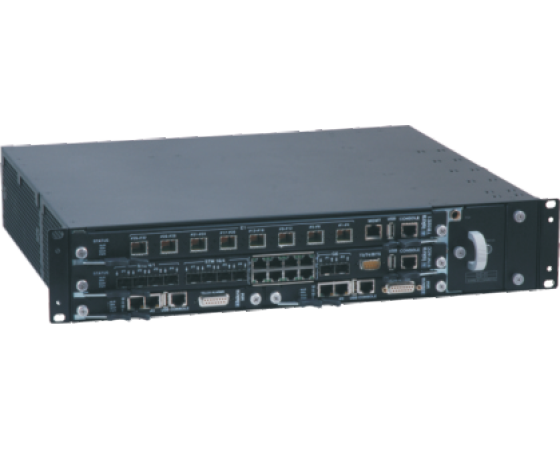

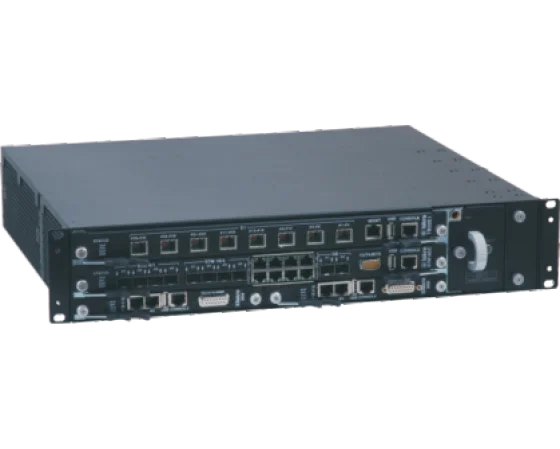

SparkLight ADM 16

SparkLight ADM-16 is a compact, high-density STM-16/4 next-generation access multiplexer, that helps to support high-speed communications services.

Provides revenue-generating next generation Ethernet services while preserving investments in legacy SDH networks
Optimized bandwidth utilization for Ethernet services using GFP, VCAT, LCAS functionality
Effective management integration using Java Web Start GUI and SNMP protocol transported by an embedded IP/OSPF telemanagement network
Compact solutions improve place and energy efficiency that can help lower operating expenses
asy migration from TDM to IP
Low OPEX/CAPEX

SDH Line Features:

Up to 4 STM16/4 SFP based optical interfaces
Up to 4 STM4/1 SFP based optical (in case of STM1 also electrical) interfaces
WDM ready
Supports many different SDH protection mechanisms
Packet Features:
Up to 8 10/100 Eth interfaces
Up to 2 Gbit Eth interfaces
GFP-F Mapping (optional GFP-T for Gbit Ethernet)
VCAT and LCAS protocol support
Enhanced L2 aggregation support
Up to 252 E1 interfaces in 5 slot chassis (max 63 E1 interfaces on special multiport E1 blade)
Java Web Start and SNMP based integrated management

Providing a wide variety of interfaces on one common platform, allows the service provider to build effective, flexible and user-friendly communications network.
Extremely powerful EoS tools enable a smooth migration from TDM to packet services. Using VCAT to provide flexible bandwidth assignment from 2Mbps to 1000Mbps and LCAS for reliable bandwidth efficient transport of many different packet services is enabled.
