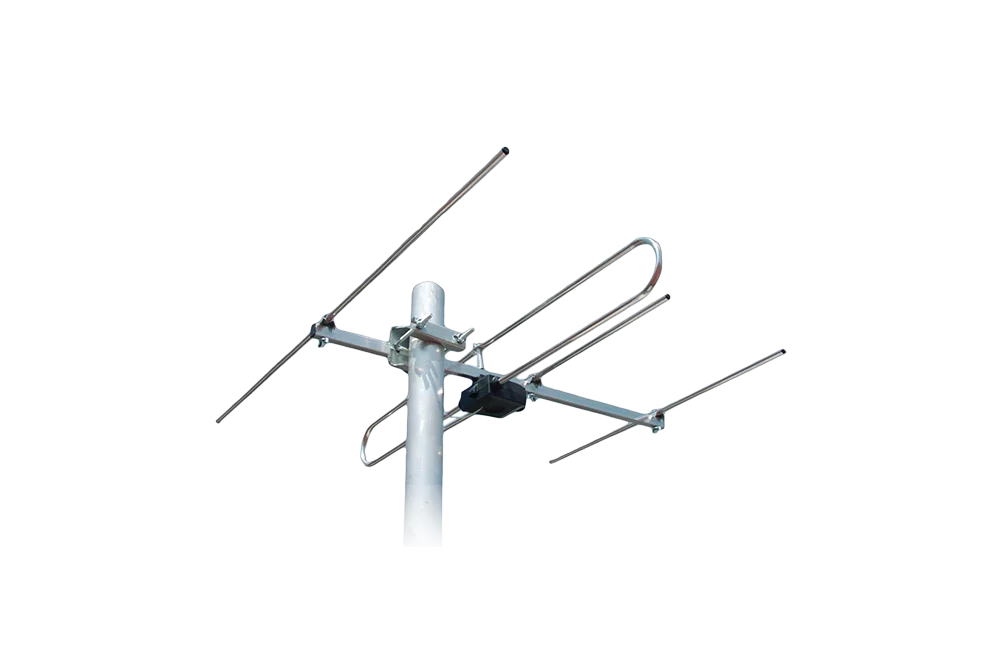

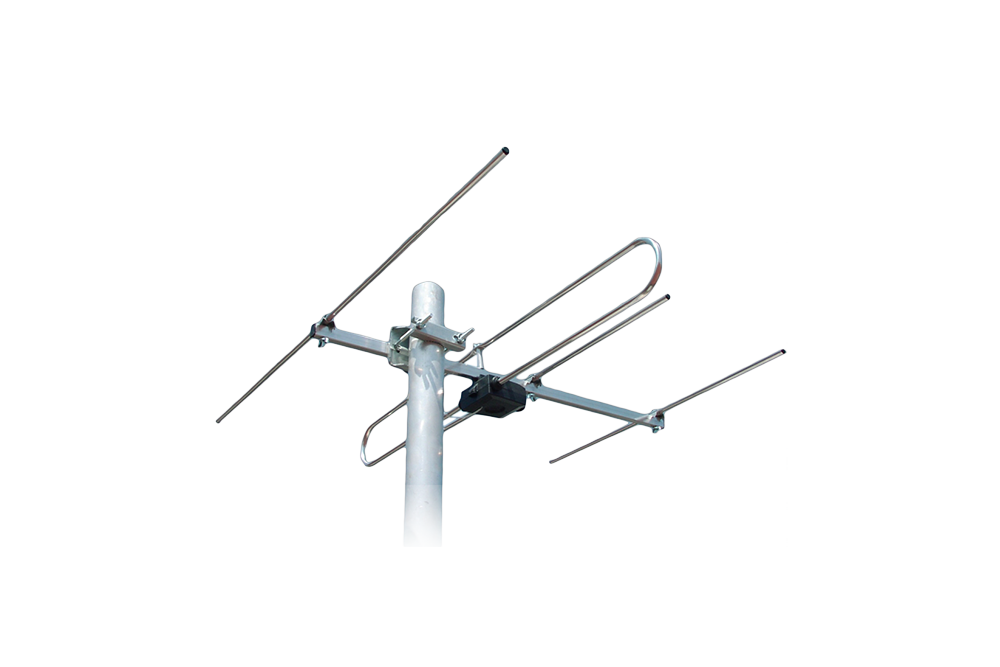

VHF TV Antenna VF-4
- Antenna can be mounted on mast in horizontal or vertical polarization.
- Antenna carrier: 18x12 mm
- Dipole: classic dipole
- VF-4: Antenna without »F« connector (coax. cable must be connected to balun mechanically by screws).
VF-4 F: Antenna with "F" female connector.
- Channel (freq.): VHF Ch. 5-12 (174-230 MHz)
- No. of elements: 4
- Gain: 5-6 dB(i)
- F/B ratio: 14 -18 dB
- Beam width: Horizontal 65°; Vertical 105°
- Antenna length: 67 cm
- Impedance: 75 Ohm
- Inclination: 0°-10°
Mounting on mast with outside diameter: 20-62 mm
