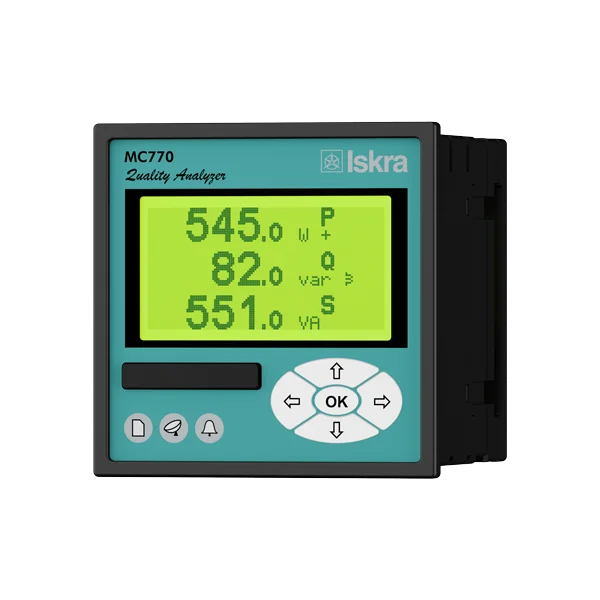

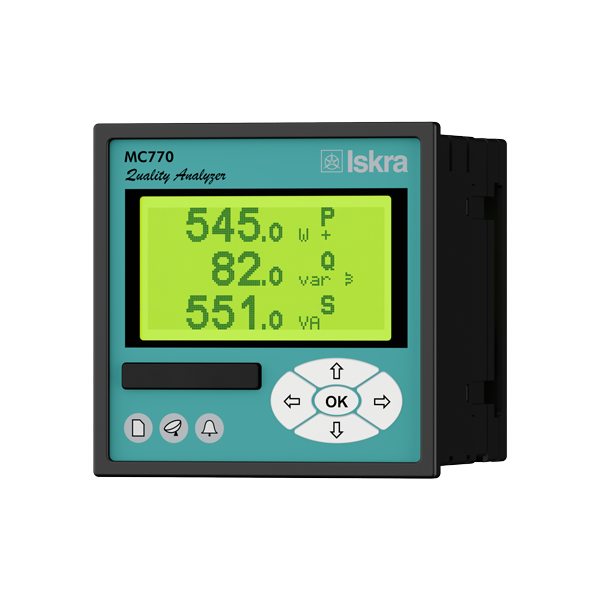

Power monitoring device MC 7x0
This power monitoring devices are intended for measuring, analysing and monitoring single-phase or three-phase electrical power network in electricity distribution and energy production companies, utilities, dwellings, industry, business buildings, designers of small power stations, etc.
This meter
- measures RMS value according to the principle of fast sampling of voltage and current signals.
- has a built-in microprocessor which calculates measurands (voltage, current, frequency, energy, power, power factor, THD phase angles, etc.) from the measured signals
Free software tool Miqen included. Miqen is a user –friendly toll for complete monitoring of the measuring instruments.
Why Iskra? With years of expertise and innovation we can guarantee you a top quality products with high functionalities at a great price. Measuring instruments, made in Slovenia – Europe, are guaranteeing accuracy and durability.
Measuring_centres_MC_7x0
- Evaluation of the electricity supply quality in compliance with SIST EN 50160
- Measurements of instantaneous values of more than 140 quantities (U, I, P, Q, S, PF, PA, f, φ, THD, MD, energy, energy cost by tariffs, etc.)
- Accuracy class 0.5 (optional 0.2)
- Recording up to 32 measurands and 32 alarms in the internal memory (8 MB flash)
- RS 232/RS 485 communication up to 115,200 bit/s or Ethernet/USB communication
- MODBUS and DNP3 communication protocol
- Up to 4 inputs or outputs (analogue outputs, analogue inputs, pulse outputs, alarm outputs, tariff inputs, digital inputs)
- Universal or AC power supply
- Automatic range of nominal current and voltage (max. 12.5 A and 750 V)
- Adjustable tariff clock, display of electric energy consumption in optional currency
- Multilingual support
- User-friendly PC MiQen software
- MC 770 - advanced network analyzer
- MC 750 - network recorder
- MC 740 - multifunction meter
