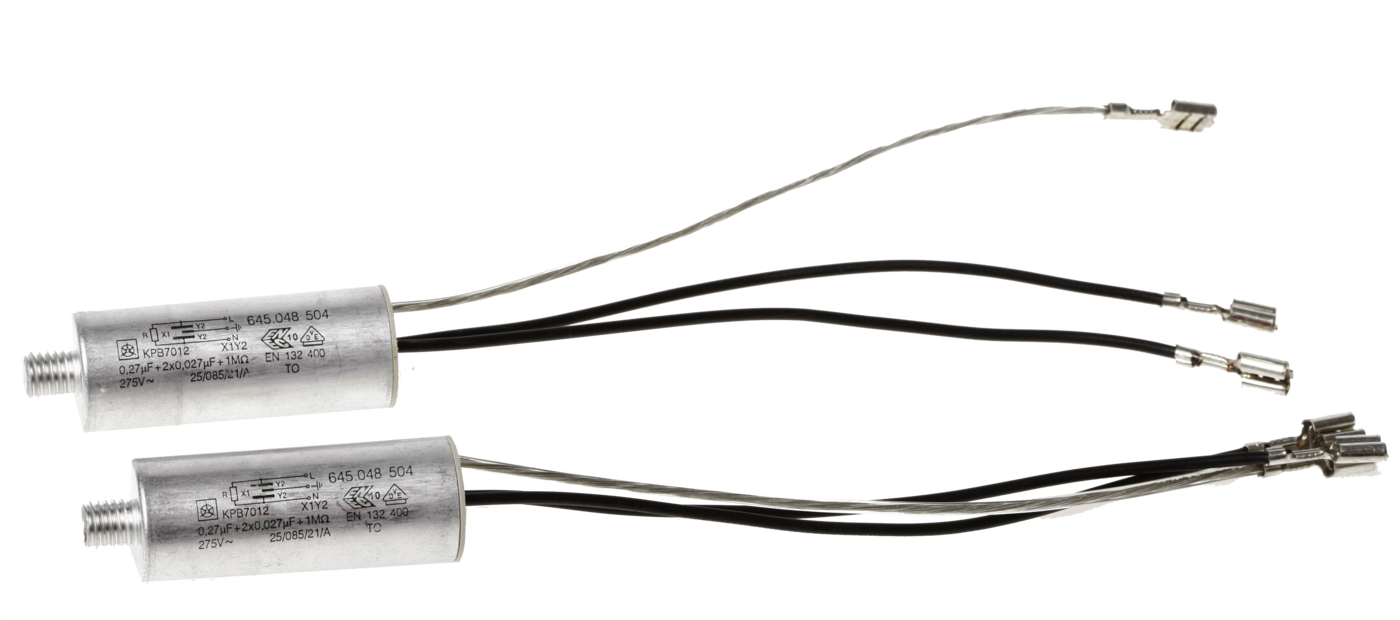

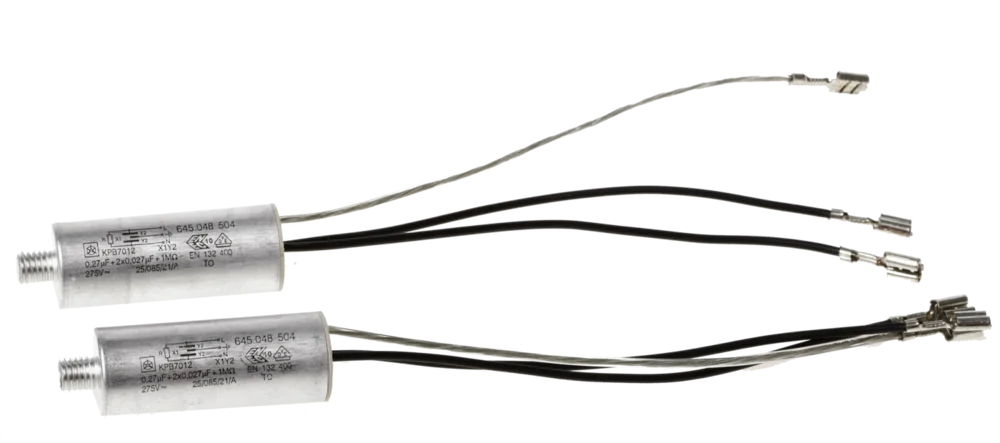

Paper Capacitors (KPB70xx)
They are used in home appliances and DC electromotors.

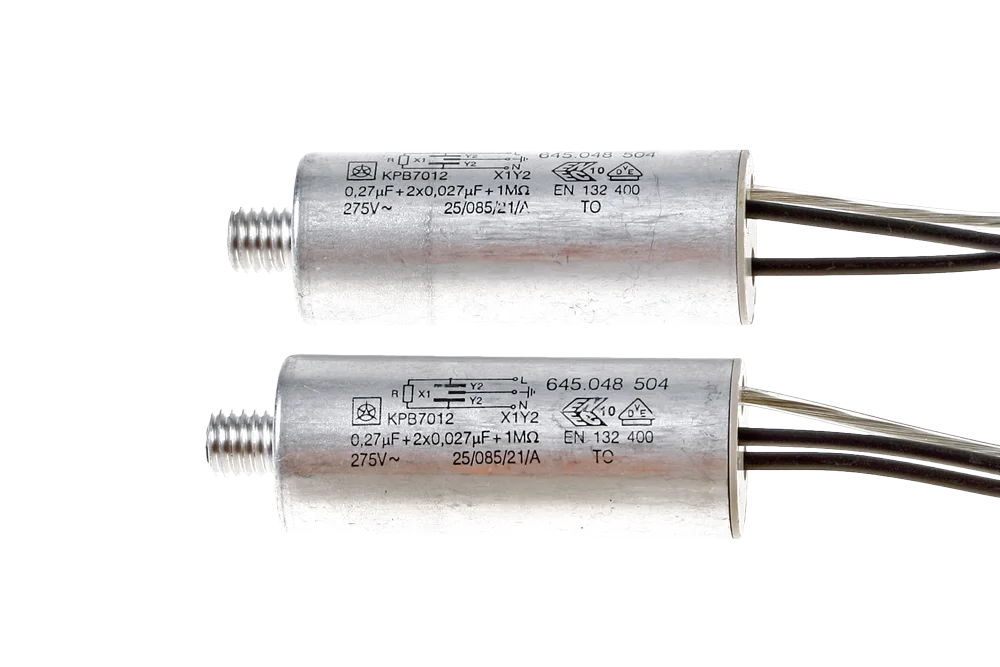

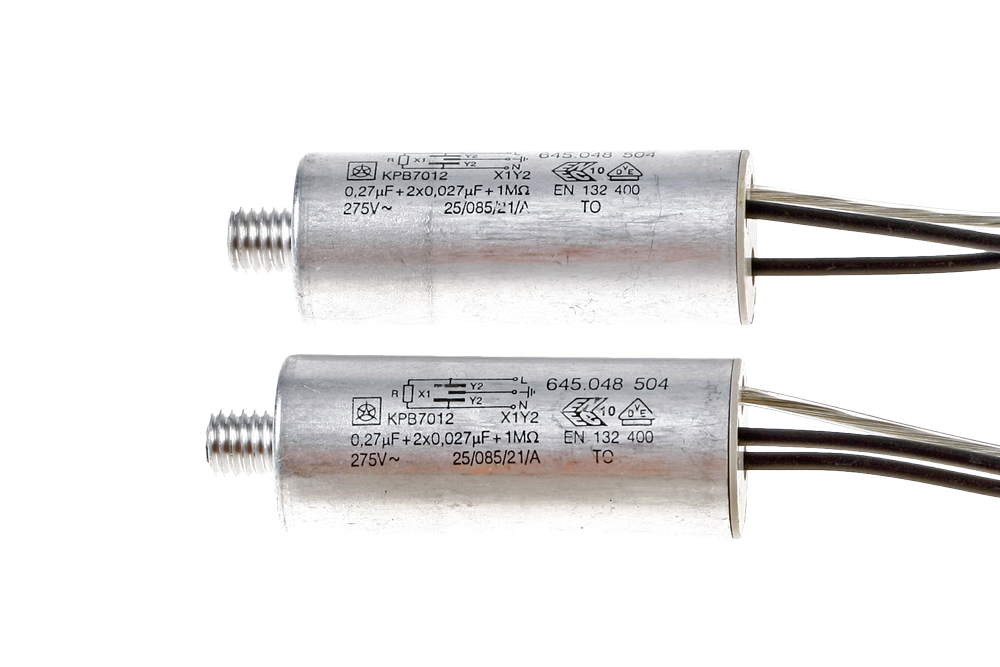

- KPB 70xx (class X1Y2) – they are used in home appliances and DC electromotors.
- They are used in home appliances and DC electromotors.
- Dielectric: Paper impregnated
- Electrodes: Aluminium foil
- Rated voltage: 275 V AC, 50/60 Hz
- Capacitance tolerance: +/- 20 %
- Climatic category: 25/100/21 acc. to IEC 60068-1
- Passive flammability: category A
- Temperature range: -25° to +100°C
- Test voltage: X1 capacitor 1790 V DC, 2 s; Y2 capacitor 2050 V AC, 2 s
- Insulation resistance at 20°C, Um = 100 V DC, t = 1min: Ri ≥ 6000MΩ for C ≤ 0.33 µF, Ri x Cn ≥ 2000 s for C %mygt% 0.33 µF
- Complies to: IEC/EN 60384-14
