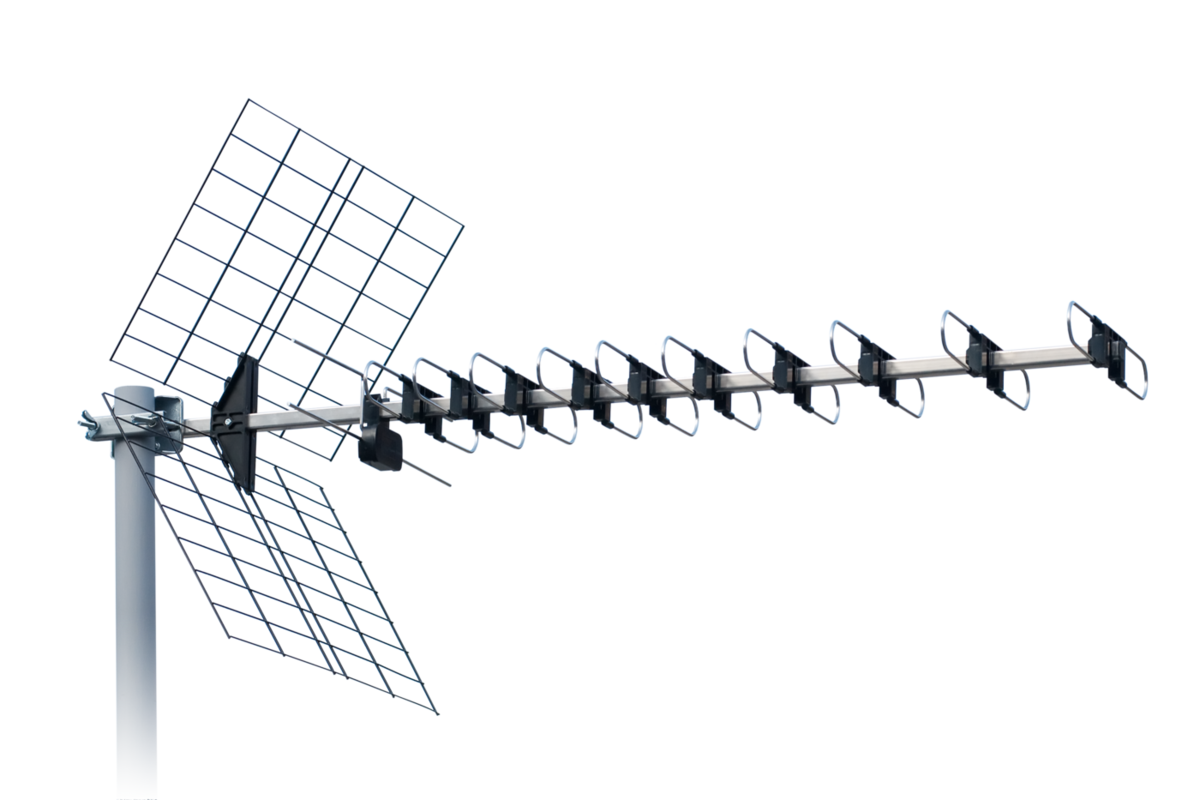

UHF TV Antenna DTX-48 F4

Excellent passive YAGI UHF antenna with narrow receiving angle and excellent gain.
Designed for receiving weak signals in UHF IV. band.

B2B shop

Channel (freq.): UHF Ch. 21-37 (470-606 MHz)
No. of elements: 48
Gain: 12-13 dB(i)
F/B ratio: > 27 dB
Beam width: Horizontal 54-40°
Antenna length: 120 cm
Inclination: 0°-10°
Mounting on mast with outside diameter: 20-62 mm

Antenna can be mounted on mast in horizontal or vertical polarization.
Covering the UHF IV. band
Dipole: DTX dipole with "F" female connector
Antenna carrier: 18x18 mm
Reflector: grid made by iron bars, powder-coated
