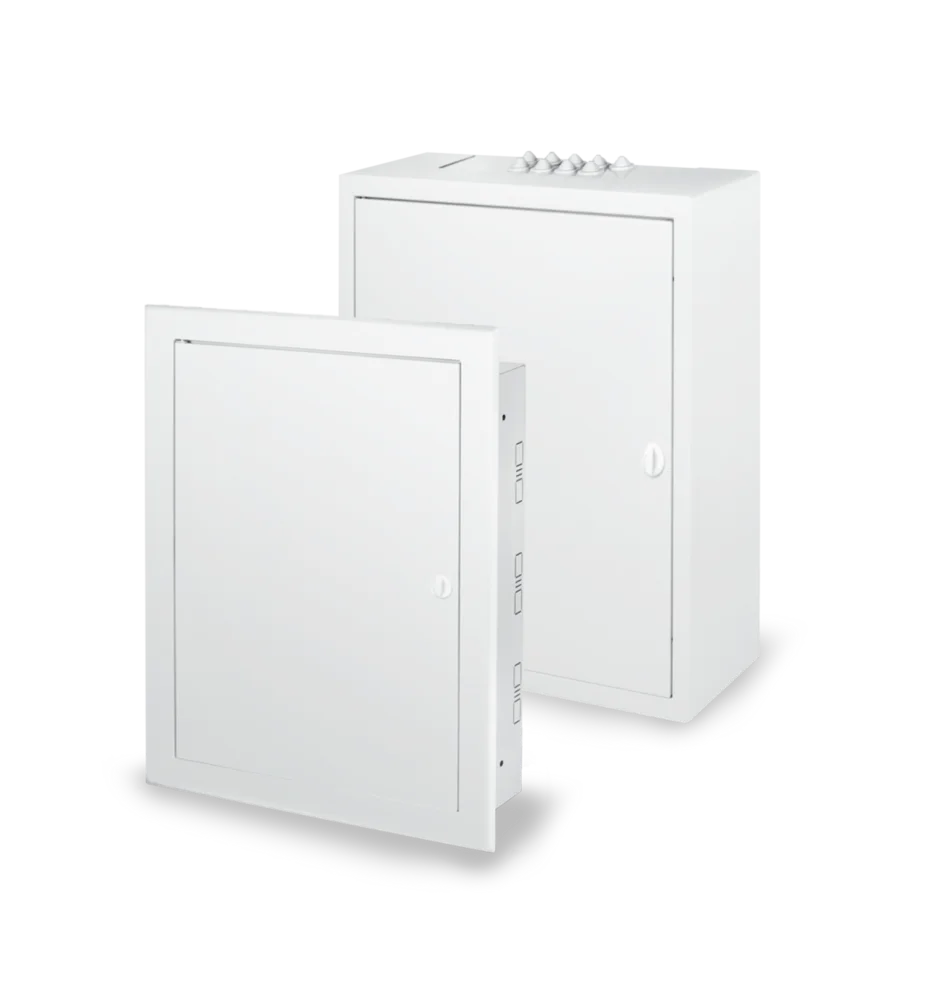

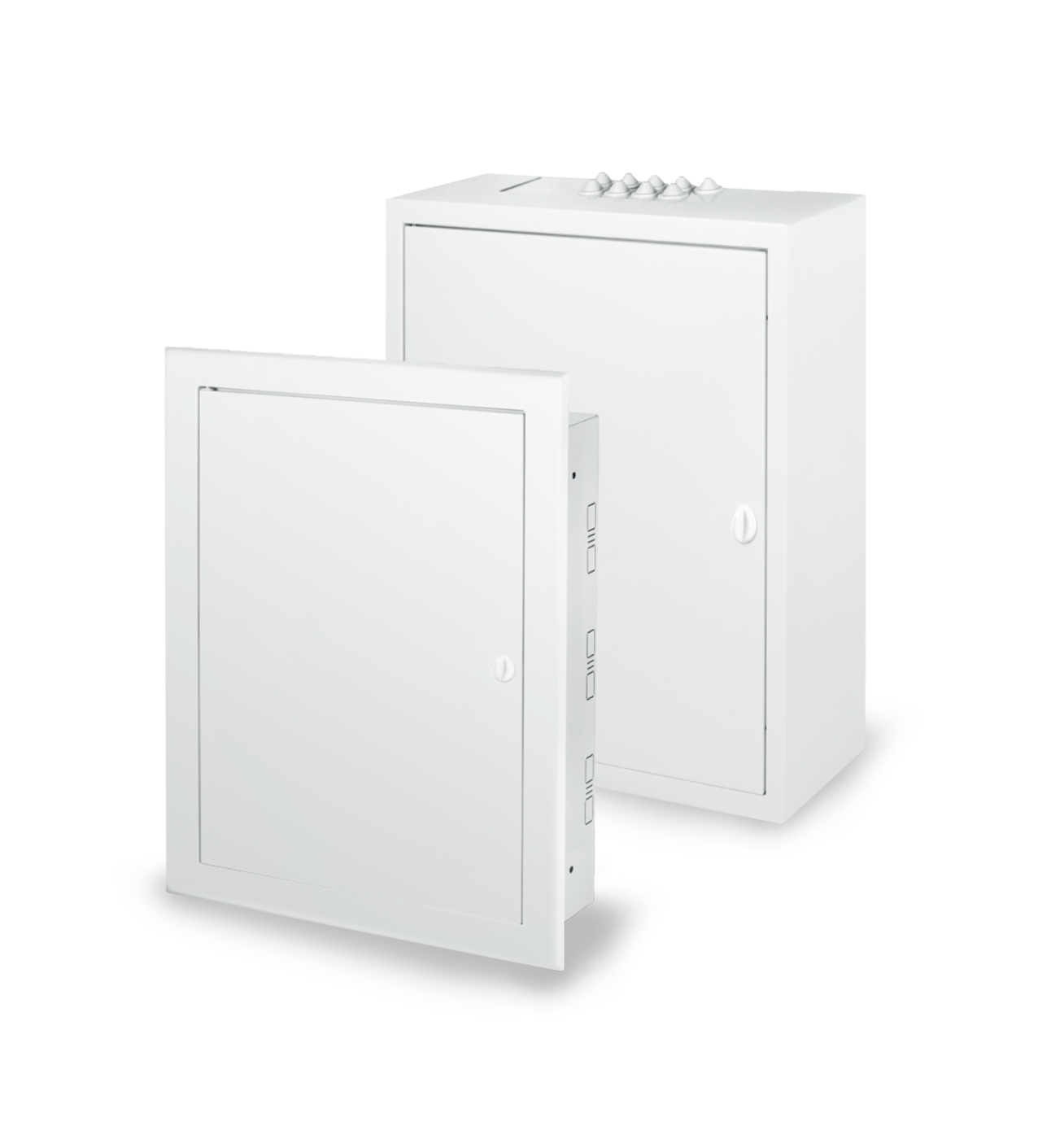

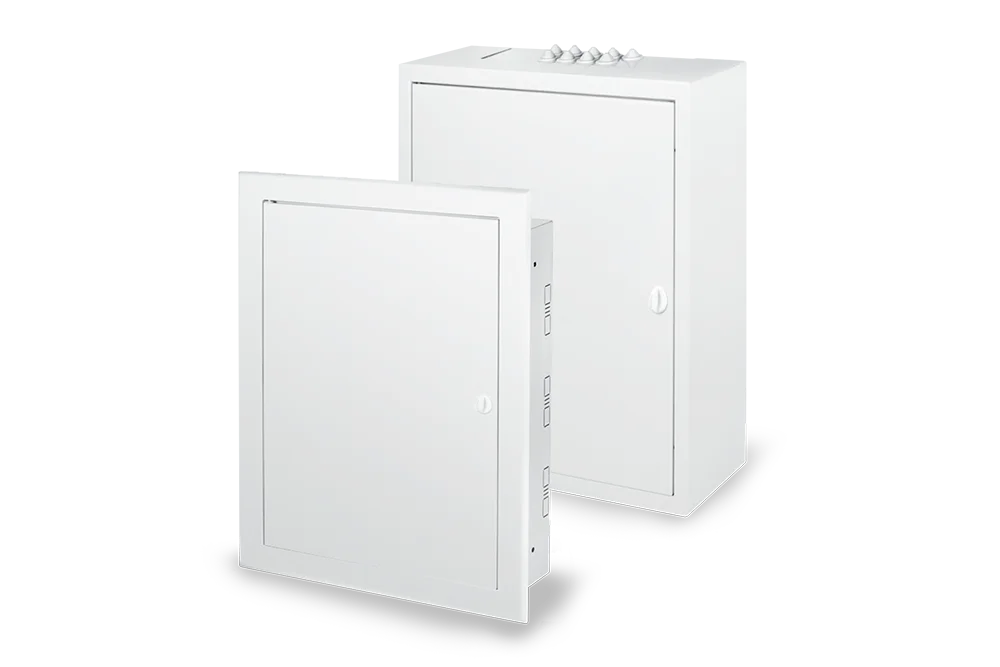

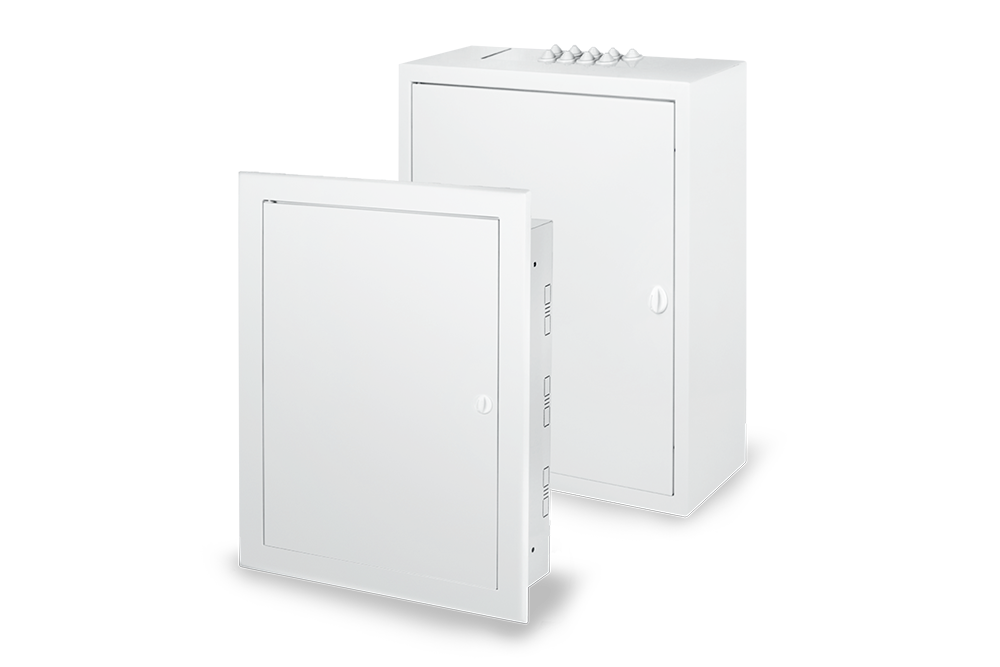

Metal distribution boards PO/NO
Metal distribution boards PO/NO
Metal distribution boards are used in residential buildings as well as in industry. Due to their size, they are particularly suitable for more advanced or demanding installations where it is necessary to install more control and protection elements than in classic installations. Due to the metal housing, they are resistant to mechanical and external influences, are compact and have a longer service life.
Electrical parameters:
- Rated DC current: ≤ 100 A
- Nominal voltage: Un = 400 V
- Nominal insulation voltage: Ui=500V
- Protection class: I
- Degree of protection: IP30
- Flush or surface installation.
- Made of 1 mm thick steel, with a protective coating of RAL 9003.
- Doors adapted for right- or left-side opening and are grounded (Pe).
- Modular covers individually removable.
- Equipped with N and Pe terminals for connecting neutral and earth conductors.
- Equipped with DIN rails for mounting of control/protection elements.
- Equipped with accessories for mounting the board in/on a wall.
