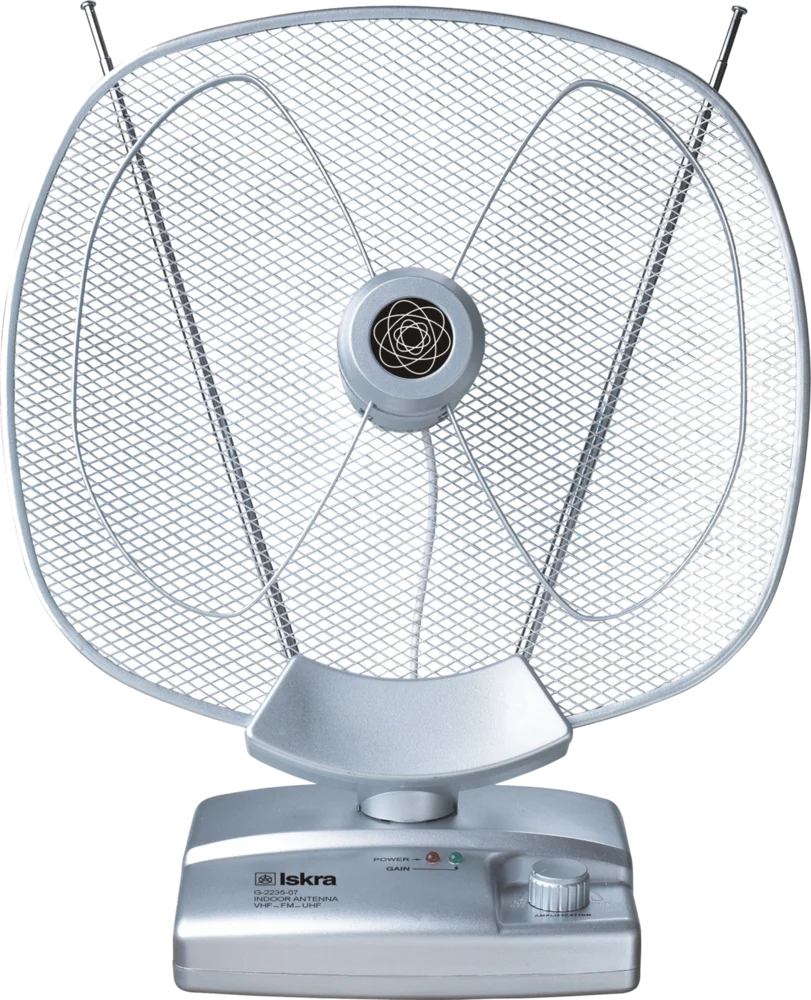

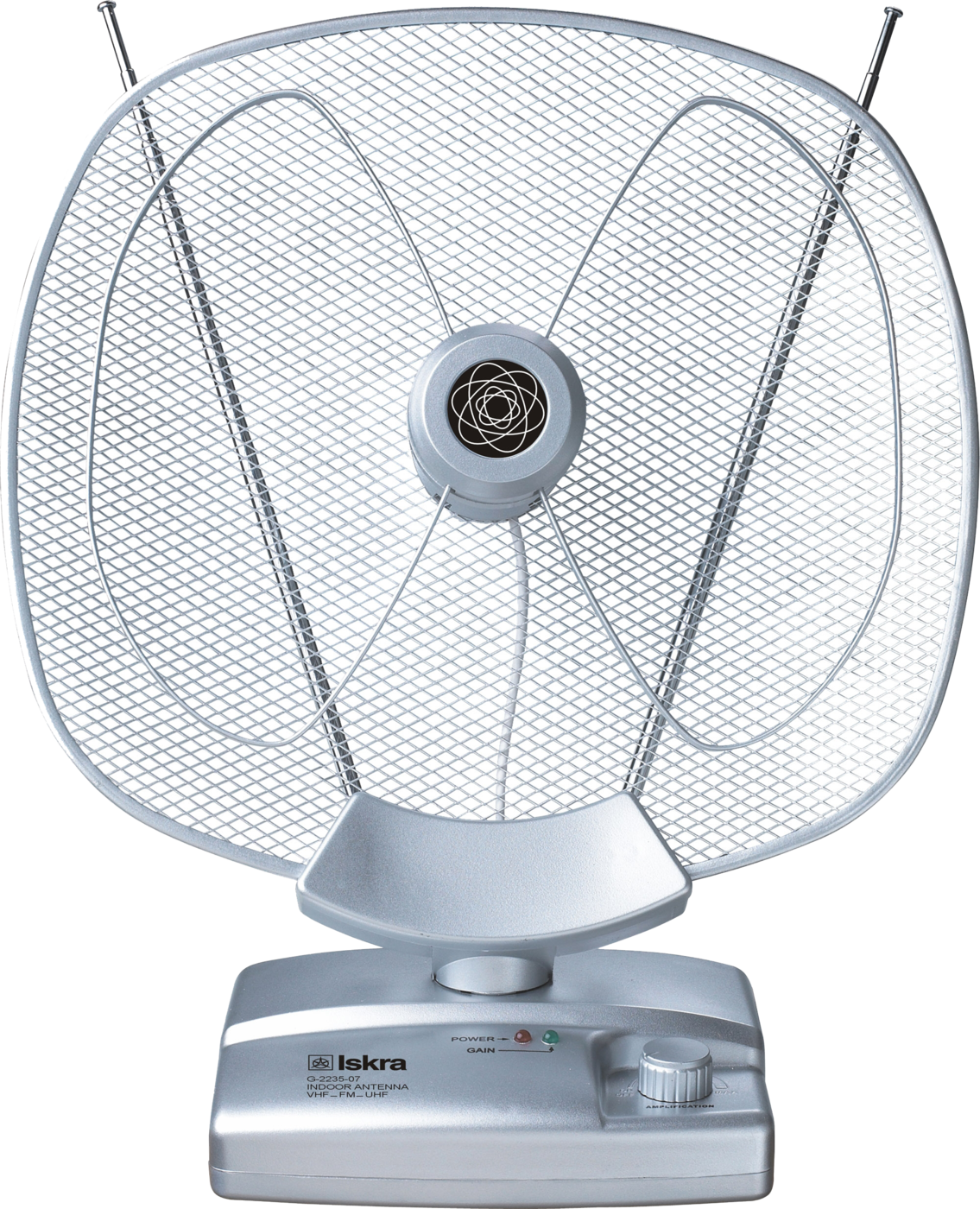

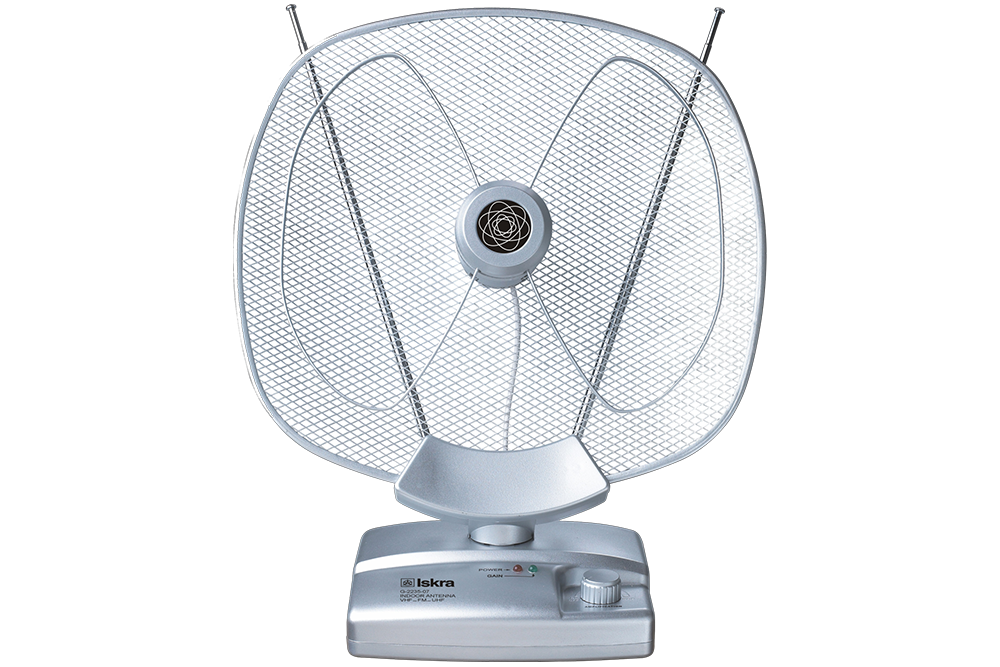

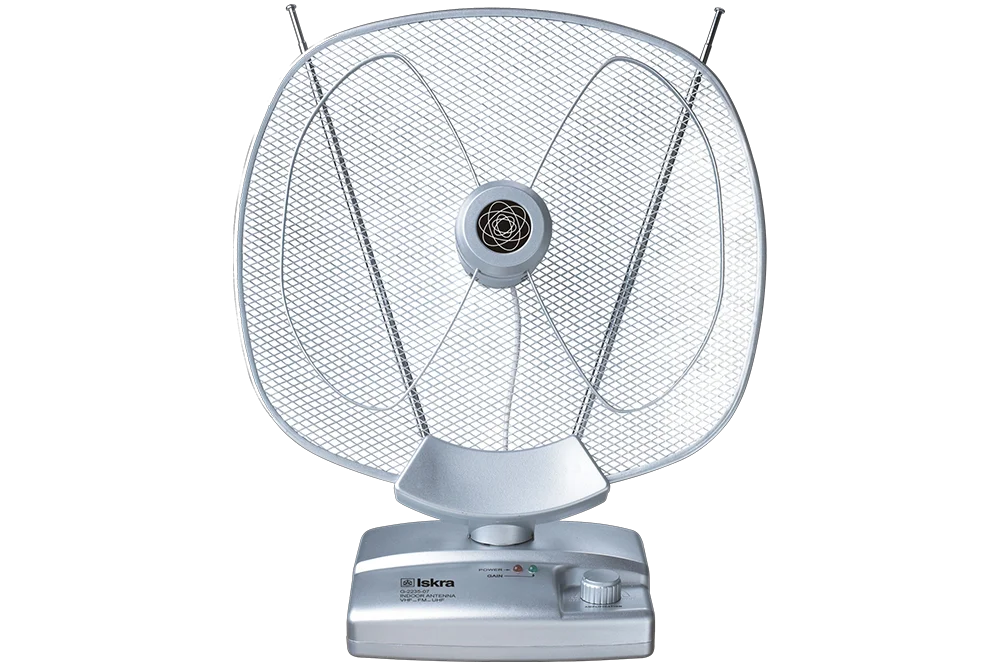

Indoor Antenna G-2235-07
The indoor antenna G-2235-07 is particularly designed for internal use, provides high reception quality. It has built-in LTE-800 cut filter. The antenna includes a coaxial extension with IEC connector for connecting it to any TV set. Antenna is also suitable for receiving digital radio DAB+ signals.
A large flexibility in use is guaranteed because of the possibility to receive both horizontal and vertical signal. Indoor antenna can be connected to the centralized TV antenna system or can be used as single antenna.
It has easy adjustable built-in amplifier.
Receiving antenna's units can be adjusted:
- length and angle adjustment of both telescopic antennas
- turning or slope the central receiving unit (depends on indoor antenna type)
Indoor antenna operates with direct connection to power supply source AC 220V, 50 Hz, or directly connected to an external DC 12 V source (car, boat, caravan, etc.). Because of that reason this antenna is ideal to be used for home and camping
- Antenna enable rotation of central receiving unit.
- Channels (frequency): FM & DAB+ & VHF Ch. 2-12 (47-240 MHz) ; UHF Ch. 21-60 (470-790 MHz)
- No. of elements: 3
- Gain (adjustable): FM & DAB+ & VHF 26 dB ; UHF max. 36 dB
- Gain control: FM & VHF 15 dB ; UHF 25 dB
- Max. output level: 95 dBμV
- Imput impedance: 75 Ohm
- Power supply: AC 220V, 50 Hz ; DC 12V, 100 mA
Antenna is packed into printed carton gift-box.
