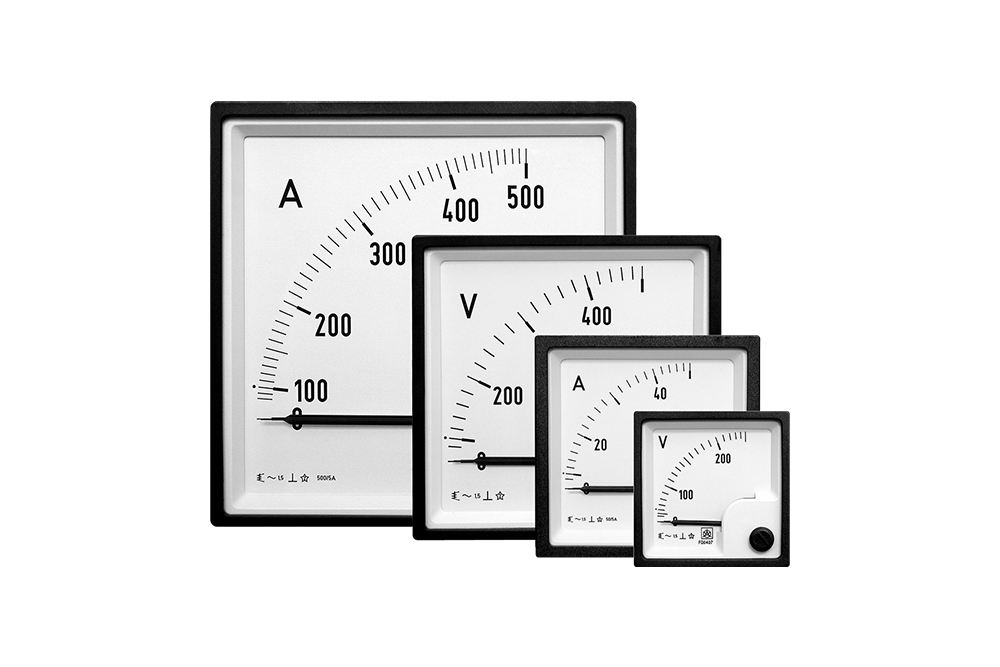

Meters for AC Voltage or Current with Moving Iron FQ
Meters with a moving iron are intended for measurement of AC currents or voltages of frequencies from 15 Hz to 100 Hz. They measure rms values independently on the signal form of current or voltage. The scale is interchangeable. The accuracy class is 1.5.
Meters are available with different front frames:
FQ 0507 – 45 x 45 mm
FQ 0407 – 48 x 48 mm
FQ 0307 – 72 x 72 mm
FQ 0207 – 96 x 96 mm
FQ 0107 – 144 x 144 mm
FQ 3307 – 72 x 72 mm (6-stage selector switch is built in the meter for measurement of all voltages)
FQ 3207 – 96 x 96 mm (6-stage selector switch is built in the meter for measurement of all voltages)
FQ 3107 – 144 x 144 mm (6-stage selector switch is built in the meter for measurement of all voltages)
FN 0103 – 86 x 72 mm
FN 0201 – 115 x 96 mm
All their dials have 90 degrees.
Ship versions of FQ 0407, FQ 0307, FQ 0207, FQ 0107 are also available.
Special meters can also be made, according to your requirements.
