Antenna P-36 GSM
Antenna P-36 GSM

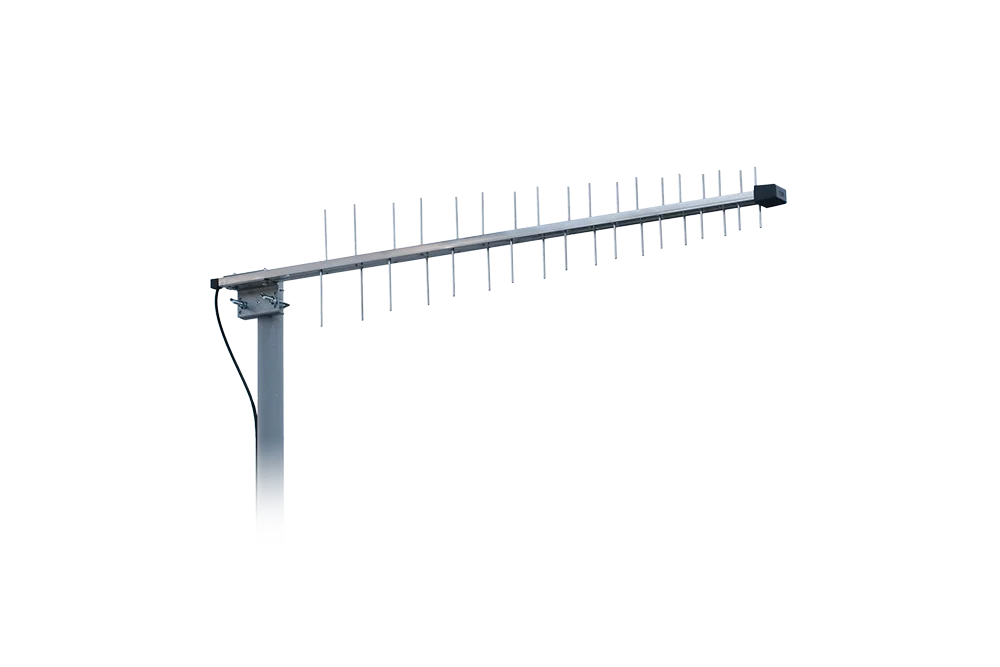

Antenna P-36 GSM is used for the reception of GSM mobile operators' signals with vertical polarization.
It covers all GSM frequency band.
- Freq. band (frequency): GSM (850-960 MHz)
- No. of elements: 36
- Gain: 11 dB(i)
- Max. VSWR: <1,5 : 1
- F/B ratio: 26 dB
- Beam width: Horizontal 48° ; Vertical 57°
- Impedance: 50 Ohm
- Antenna length: 100 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m, »FME« female connector on cable end
-
Mounting on mast with outside diameter: 20-50 mm
