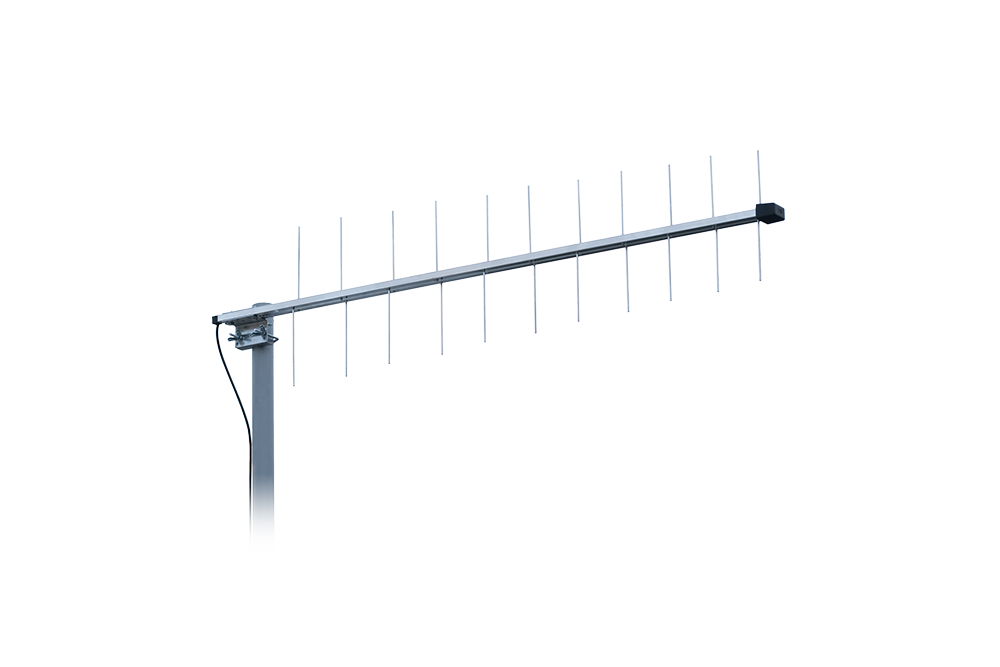

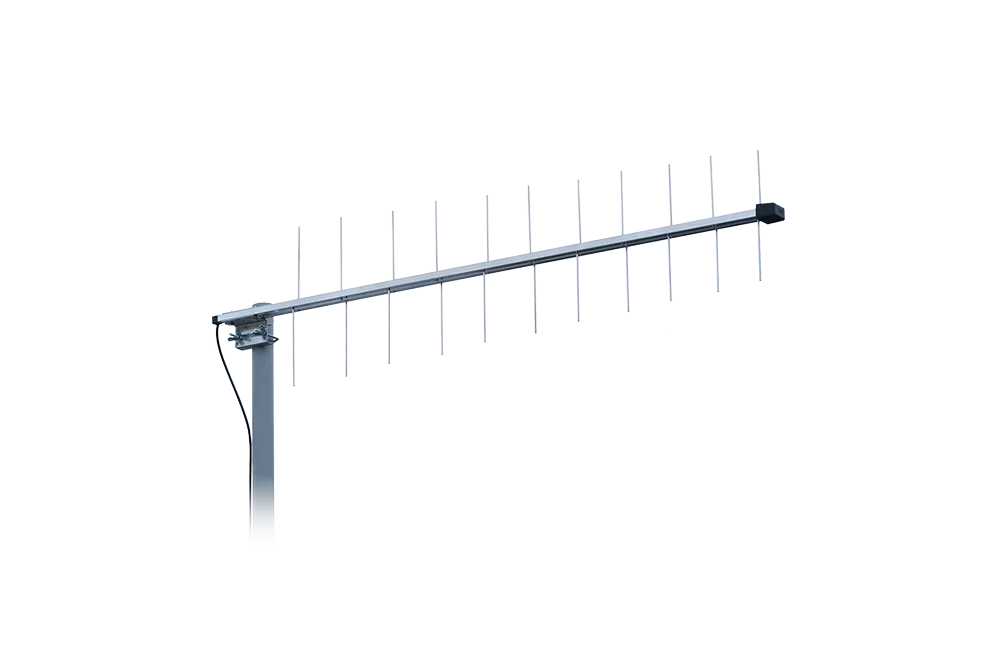

Antenna P-22/460 TETRA 400
Antenna P-22/460 TETRA 400
Antenna P-22/460 is used for the reception of TETRA 400 mobile operators' signals.
It covers part of TETRA 400 frequency band.
- P-22/460: Version for vertical polarization only and »FME« female connector on cable end.
- P-22/460 H/V: Version for horizontal or vertical polarization and »FME« female connector on cable end.
- P-22/460 SMA: Version for vertical polarization only and »SMA« male connector on cable end.
- P-22/460 SMA H/V: Version for horizontal or vertical polarization and »SMA« male connector on cable end.
- Freq. band (frequency): TETRA 400 (450-470 MHz)
- No. of elements: 22
- Gain: 12 dB(i)
- Max. VSWR: <1,5 : 1
- F/B ratio: 25 dB
- Beam width: Horizontal 49°; Vertical 73°
- Impedance: 50 Ohm
- Antenna length: 123,5 cm
- Coaxial cable: impedance 50 Ohm, cable length 10 m
