Control Data Acquisition Software MCE 940

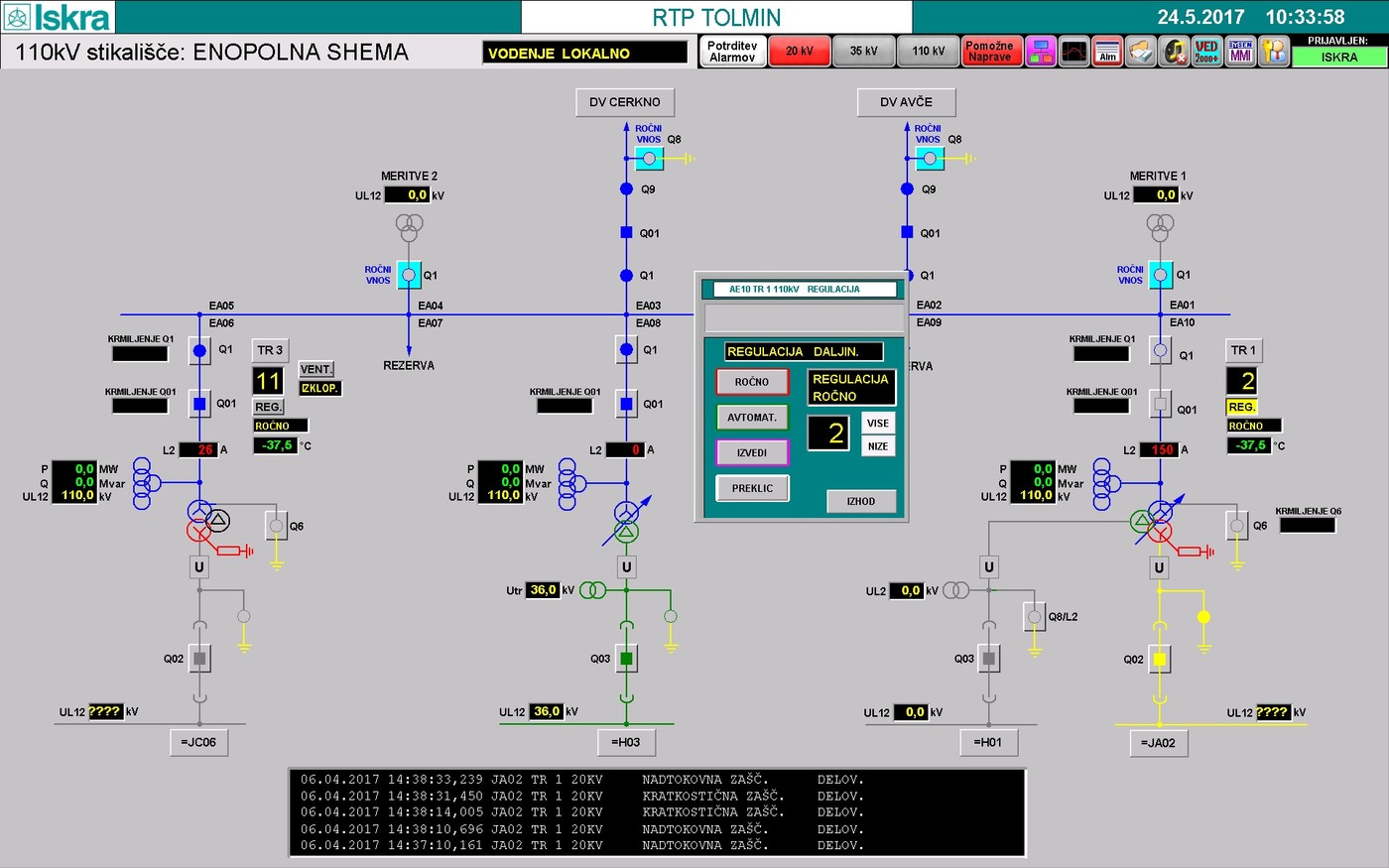

The MCE 940 forms a powerful Supervisory, Control and Data Acquisition software (SCADA) intended specially for power distribution applications. The MCE 940 comprises functions of supervision, data collecting, control, data storage, analysis and graphical display by using single-line diagrams, interactive blocks and data charts. The MCE 940 is not limited in size of application and it can be used for any control level; from control of a single MV substation to control of the whole utility network. Due to its unique possibilities of expansion and customization it can be used for virtually any application.
Control Data Acquisition Software MCE 940
MCE 940 SCADA has wide range of functions:
- Realtime display of the power system
- Alarming
- Measurements
- Commands
- Automatic printout of events
- Archives of events
- History graph for measurement
- Realtime graph for measurements
- IEC 8705-104
- IEC 61850
Our MCE 940 SCADA is performing two essential tasks:
- It telemeters data back from remote sites
- It facilitates remote control from the System Control Center
Alarm processing processes the data collected and alerts the engineer immediately if an alarm condition is detected.
MCE 940 SCADA is based on IFIX system.
- Real-time display of the status and analog measurements of the power system
- Support for Geographic Information System (GIS)
- Commands with integrated interlocking
- Sequence control
- Alarming
- Trending
- Equipment statistics (number of breaker operations with maintenance alarming)
- Tags (elements with stored value after any reloading of the system)
- Events in high time-resolution (fault events, analog and digital)
- Energy metering
- Operational statistics of protection relays and circuit breakers
- Storing of historical data in the relational archive database
- Automatic print-out of events
- Lists of currently present and unacknowledged alarms
- List of inactive unacknowledged alarms
- Off-normal list
- Reports and print-outs at operators request
- User based security
- User control areas
- Maintenance mode for single points or entire RTUs (silencing alarms, command prevention)
- Status of LAN devices (servers, printers switches …)
- Operator notes with integrated MS Word and MS Excel
- Simple integration of additional functions
- Substations
- Distributions control centers
- Transmissions control centers
- Industrial/traffic power supplies control centers
- IEC 61850
- IEC 60870-5-104
- 3rd party OPC
- Various protocols with the use of SCU810 communication gateway
-
